A22NE-PD / A22NE-P / A22E
Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)
Install in 22-dia. or 25-dia. Panel Cutout (When Using a Ring)
Related Contents
- Features
- Lineup
- Specifications
- Dimensions
- Catalog / Manual / CAD / Software
A22NE-PD Push-in Plus Terminal Block Modelslast update: January 21, 2022
A22NE-PD Push-in Plus Terminal Block Models
Certified Standard Ratings
• UL508 (File No. E76675), CSA C22.2 No.14
5 A at 125 VAC, 3 A at 250 VAC B300
• TÜV (EN60947-5-1) - Certified direct opening -
(EN60947-5-5)
AC-15 3 A at 125 VAC
DC-13 1 A at 30 VDC
• CCC (GB/T14048.5)
AC-15 3 A at 125 VAC
DC-13 1 A at 30 VDC
5 A at 125 VAC, 3 A at 250 VAC B300
• TÜV (EN60947-5-1) - Certified direct opening -
(EN60947-5-5)
AC-15 3 A at 125 VAC
DC-13 1 A at 30 VDC
• CCC (GB/T14048.5)
AC-15 3 A at 125 VAC
DC-13 1 A at 30 VDC
Applicable Standards
UL1059, UL486E
Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device.
This fuse is not provided in the main unit.
Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device.
This fuse is not provided in the main unit.
Certified Standards
| Certification body | Standards | File No. |
|---|---|---|
| UL * | UL508, C22.2 No.14 | E76675 |
| TÜV SÜD | EN60947-5-1(Certified direct opening),
EN60947-5-5 |
Consult your OMRON representative for details. |
| CQC (CCC) | GB/T14048.5 | Consult your OMRON representative for details. |
Note: Only models with NC contacts have a direct opening mechanism.
* UL-certification for CSA C22.2 No. 14 has been obtained.
Ratings
Contacts (Standard Load)
|
Rated
insulation voltage (V) |
Rated carry
current (A) |
Rated
voltage (V) |
Rated current (A) | |||
|---|---|---|---|---|---|---|
|
AC15
(Inductive load) |
AC12
(Resistive load) |
DC13
(Inductive load) |
DC12
(Resistive load) |
|||
| 250 | 5 | 30 VAC | --- | --- | --- | --- |
| 125 VAC | 3 A | 5 A | --- | --- | ||
| 250 VAC | 1.5 A | 3 A | --- | --- | ||
| 30 VDC | --- | --- | 1 A | 2 A | ||
| 125 VDC | --- | --- | 0.22 A | 0.4 A | ||
| 250 VDC | --- | --- | 0.1 A | 0.2 A | ||
Note: 1. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 20 operations/minute
Note: 2. Minimum applicable load: 1 mA at 5 VDC (Resistive load)
The operating range may vary depending on the usage conditions and type of load.
LED Lamp (A22NZ-L-RC)
| Rated voltage | Operating voltage | Current value |
|---|---|---|
| 24 VAC/VDC | 24 VAC/VDC ± 10% | Approx. 12 mA |
Characteristics
| Operation | Turn-reset | Pull-reset | |||
|---|---|---|---|---|---|
| Non-lighted model | Lighted Model | Non-lighted model | Non-lighted model
(Models with IP69K) |
||
| A22NE-[]-PD[][]-N-[] | A22NE-M-PD[][]-C-[] | A22NE-MP-PD[][]-N-[] | A22NE-MP-PD[][]-N-69K | ||
| Allowable
operating frequency |
Mechanical | 30 operations/minute or less (One operation consists of set and reset operations.) | |||
| Electrical | 30 operations/minute or less (One operation consists of set and reset operations.) | ||||
| Insulation resistance *1 | 100 MΩ min. (at 500 VDC) | ||||
| Contact resistance | 100 mΩ max. (initial value) | ||||
| Dielectric
strength |
Between
terminals of same polarity*1 |
2,000 VAC, 50/60 Hz 1 minute (initial value) | |||
| Between
terminals of different polarity |
2,000 VAC, 50/60 Hz 1 minute (initial value) | ||||
| Between each
terminal and ground |
2,000 VAC, 50/60 Hz 1 minute (initial value) | ||||
| Vibration
resistance |
Malfunction | 10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms) | |||
| Shock
resistance |
Malfunction | 250 m/s2 max. (contact separation within 1 ms) | |||
| Durability | Mechanical | 300,000 operations min. (One operation consists of set and reset operations.) | 100,000 operations min.
(One operation consists of set and reset operations.) |
||
| Electrical
(100 mA at 24 VAC (Resistive load)) |
250,000 operations min. (One operation consists of set and reset operations.) | 100,000 operations min.
(One operation consists of set and reset operations.) |
|||
| Electrical
(3 mA at 250 VAC (Resistive load)) |
100,000 operations min. (One operation consists of set and reset operations.) | ||||
| Ambient operating temperature *2 | -20 to +70°C | -20 to +55°C | -20 to +70°C | -20 to +70°C *3 | |
| Ambient operating humidity | 35 to 85% RH | ||||
| Ambient storage temperature *2 | -40 to +70°C | ||||
| Degree of protection *4 | IP65 oil-resistant models | IP65 | IP65 oil-resistant models | IP69K | |
| Electric shock protection class | Class II | ||||
| PTI (tracking characteristic) | 175 | ||||
| Degree of contamination | 3 (EN 60947-5-1) | ||||
| Minimum direct opening stroke | 11 mm | ||||
| Minimum direct opening force | 45 N | ||||
| Conditional short-circuit current | 100 A (EN 60947-5-1) | ||||
| Wight (for a 40-dia. head
2NC/2NO Operation Unit) |
Approx. 95 g | Approx. 95 g | Approx. 125 g | Approx. 135 g | |
*1. State when an LED is not added between terminals of the same polarity on a lighting unit.
*2. With no icing or condensation.
*3. Capable of operation at up to 80°C under IP[]9K testing conditions per JIS D 5020.
*4. The degree of protection from the front of the panel.
Operating Characteristics
| Item | Turn-reset | Pull-reset | |
|---|---|---|---|
| Lighted / non-lighted models | Non-lighted model |
Non-lighted model
(Models with IP69K) |
|
| Total travel force (TTF) | 45 N max. | 60 N max. | 70 N max. |
| Return force (RF) | 0.25N·m max. * | 60 N max. | 70 N max. |
| Total travel (TT) | 10 ±1 mm | 5.5 ±1 mm | |
* Rotation torque value.

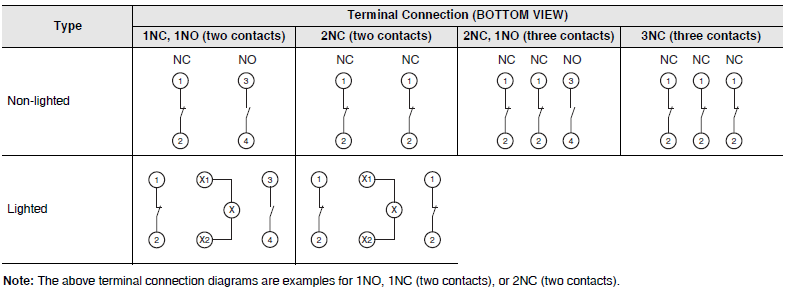

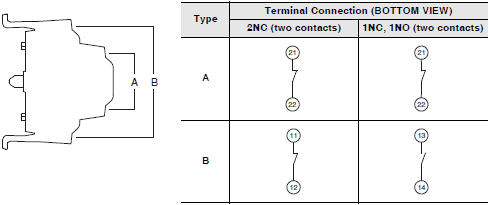

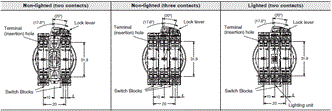

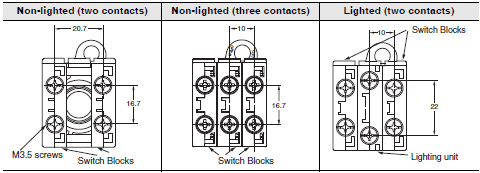

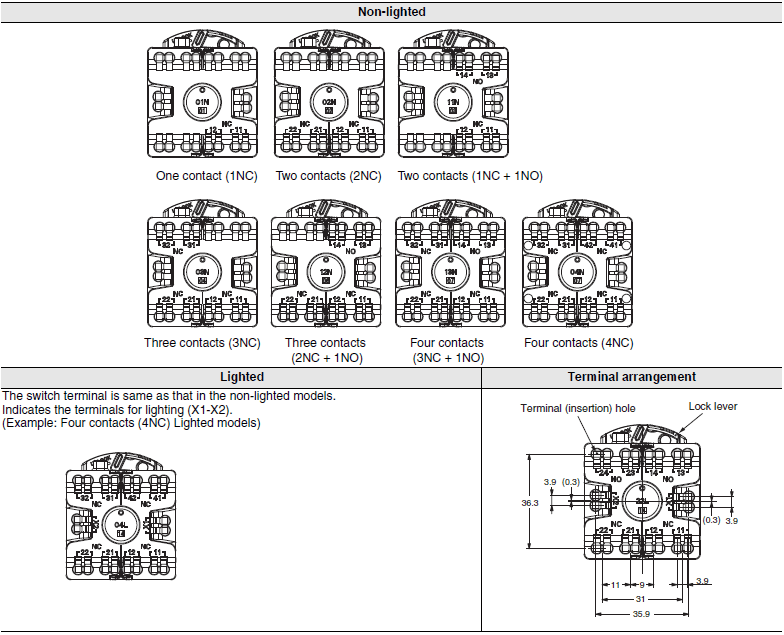

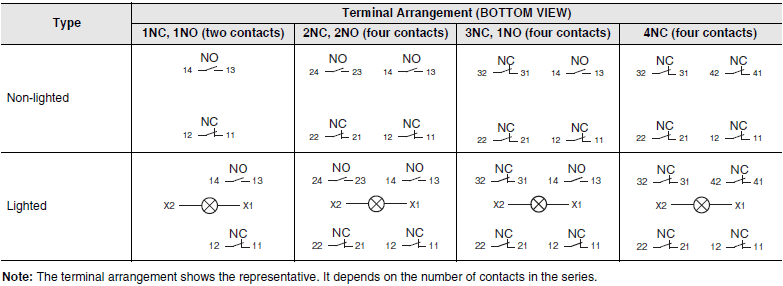

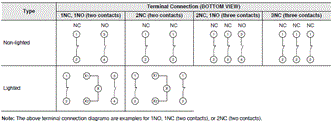

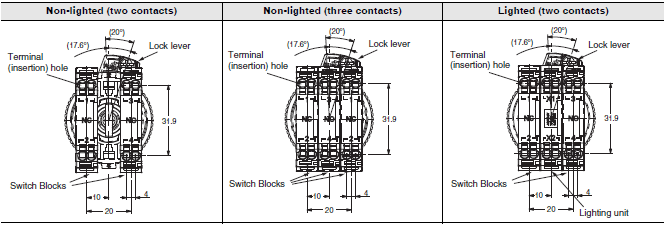

Terminal Arrangement (BOTTOM VIEW)
Terminal Arrangement
A22NE-P Push-in Plus Terminal Block Models
Certified Standard Ratings
• UL508 (File No. E76675), CSA C22.2 No.14
6 A at 240 VAC, 10 A at 120 VAC
• TÜV (EN60947-5-1) - Certified direct opening -
(EN60947-5-5)
AC-15 3 A at 240 VAC
DC-13 4 A at 24 VDC
• CCC (GB/T14048.5)
AC-15 3 A at 240 VAC
DC-13 4 A at 24 VDC
6 A at 240 VAC, 10 A at 120 VAC
• TÜV (EN60947-5-1) - Certified direct opening -
(EN60947-5-5)
AC-15 3 A at 240 VAC
DC-13 4 A at 24 VDC
• CCC (GB/T14048.5)
AC-15 3 A at 240 VAC
DC-13 4 A at 24 VDC
Applicable Standards
UL1059, UL486E (Push-in Plus Terminal Block Types)
Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device. This fuse is not
provided in the main unit.
Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device. This fuse is not
provided in the main unit.
Certified Standards
| Certification body | Standards | File No. |
|---|---|---|
| UL * | UL508, C22.2 No.14 | E76675 |
| TÜV SÜD | EN60947-5-1 (Certified direct opening),
EN60947-5-5 |
Consult your OMRON representative for details. |
| CQC (CCC) | GB/T14048.5 | Consult your OMRON representative for details. |
Note: Only models with NC contacts have a direct opening mechanism.
* UL-certification for CSA C22.2 No. 14 has been obtained.
Ratings
Contacts (Standard Load)
|
Rated
insulation voltage (V) |
Rated carry
current (A) |
Rated
voltage (V) |
Rated current (A) | |||
|---|---|---|---|---|---|---|
|
AC15
(Inductive load) |
AC12
(Resistive load) |
DC13
(Inductive load) |
DC12
(Resistive load) |
|||
| 600 | 10 | 24 VAC | 10 | 10 | --- | --- |
| 120 VAC | 6 | 10 | ||||
| 240 VAC | 3 | 6 | ||||
| 380 VAC | 1.9 | 2 | ||||
| 440 VAC | 1.6 | 2 | ||||
| 24 VDC | --- | --- | 4 | 8 | ||
| 120 VDC | 1.1 | 2.2 | ||||
| 240 VDC | 0.55 | 1.1 | ||||
Note: 1. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3)Operating frequency: 20 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC (Resistive load)
The operating range may vary depending on the usage conditions and type of load.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3)Operating frequency: 20 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC (Resistive load)
The operating range may vary depending on the usage conditions and type of load.
LED Lamp
| Rated voltage | Operating voltage | Current value |
|---|---|---|
| 6 VAC/VDC | 6 VAC/VDC ± 10% | Approx. 11 mA |
| 12 VAC/VDC | 12 VAC/VDC ± 10% | Approx. 12 mA |
| 24 VAC/VDC | 24 VAC/VDC ± 10% | Approx. 12 mA |
| 100 VAC | 100 VAC ± 10% | Approx. 12 mA |
| 110 VAC | 110 VAC ± 10% | |
| 120 VAC | 100 VAC to 130 VAC | |
| 200 VAC | 200 VAC ± 10% | Approx. 12 mA |
| 220 VAC | 220 VAC ± 10% | |
| 230 VAC | 230 VAC ± 10% | |
| 240 VAC | 220 VAC to 250 VAC |
Characteristics
| Operation | Turn-reset | Pull-reset | |||
|---|---|---|---|---|---|
| Non-lighted model | Lighted Model | Non-lighted model | |||
| A22NE-[]-P[][][]-N | A22NE-M-P[][][]-[] | A22NE-MP-P[][][]-N | A22NE-MP-P[][][]-N-69K | ||
| Allowable
operating frequency |
Mechanical | 30 operations/minute or less
(One operation consists of set and reset operations.) |
|||
| Electrical | 30 operations/minute or less
(One operation consists of set and reset operations.) |
||||
| Insulation resistance *1 | 100 MΩ min. (at 500 VDC) | ||||
| Contact resistance | 100 mΩ max. (initial value) | ||||
| Dielectric
strength |
Between
terminals of same polarity *1 |
2,500 VAC, 50/60 Hz 1 minute (initial value) | |||
| Between each
terminal and ground |
2,500 VAC, 50/60 Hz 1 minute (initial value) | ||||
| Vibration
resistance |
Malfunction | 10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms) | |||
| Shock
resistance |
Malfunction | 250 m/s2 max. (contact separation within 1 ms) | |||
| Durability | Mechanical | 300,000 operations min.
(One operation consists of set and reset operations.) |
100,000 operations min.
(One operation consists of set and reset operations.) |
||
| Electrical | 300,000 operations min.
(One operation consists of set and reset operations.) |
100,000 operations min.
(One operation consists of set and reset operations.) |
|||
| Ambient operating
temperature *2 |
-20 to +70°C | -20 to +55°C | -20 to +70°C | -20 to +70°C *3 | |
| Ambient operating
humidity |
35 to 85% RH | ||||
| Ambient storage
temperature *2 |
-40 to +70°C | ||||
| Degree of protection*4 | IP65 oil-resistant models *5 | IP65 | IP65 oil-resistant models *5 | IP69K | |
| Electric shock
protection class |
Class II | ||||
| PTI
(tracking characteristic) |
175 | ||||
| Degree of contamination | 3 (EN 60947-5-1) | ||||
| Minimum direct
opening stroke |
11 mm | ||||
| Minimum direct
opening force |
45 N | ||||
| Conditional
short-circuit current |
100 A (EN 60947-5-1) | ||||
| Wight (for a 40-dia. Head
1NC/1NO Operation Unit) |
Approx. 55 g | Approx. 60 g | Approx. 85 g | Approx. 115 g | |
*1. State when an LED is not added between terminals of the same polarity on a lighting unit. Does not apply to
lighted-type 100 to 200 V lighting units.
*2. With no icing or condensation.
*3. Capable of operation at up to 80°C under IP[]9K testing conditions per JIS D 5020.
*4. The degree of protection from the front of the panel.
*5. The degree of protection is IP65 even with an integrated control box, but the system is not oil resistant.
lighted-type 100 to 200 V lighting units.
*2. With no icing or condensation.
*3. Capable of operation at up to 80°C under IP[]9K testing conditions per JIS D 5020.
*4. The degree of protection from the front of the panel.
*5. The degree of protection is IP65 even with an integrated control box, but the system is not oil resistant.
Operating Characteristics
| Item | Turn-reset | Pull-reset | |
|---|---|---|---|
|
Lighted /
non-lighted models |
Non-lighted model |
Non-lighted model
(Models with IP69K) |
|
| Total travel force (TTF) | 45 N max. | 60 N max. | 70 N max. |
| Return force (RF) | 0.25N·m * max. | 60 N max. | 70 N max. |
| Total travel (TT) | 10 ±1 mm | 5.5 ±1 mm | 5.5 ±1 mm |
* Rotation torque value.

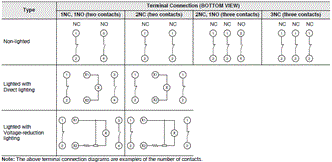

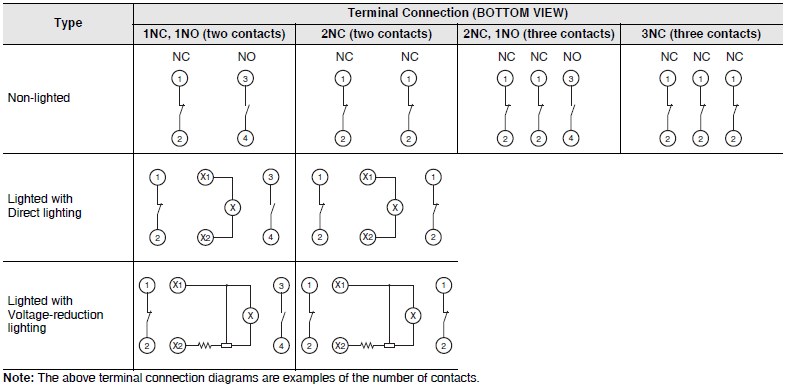

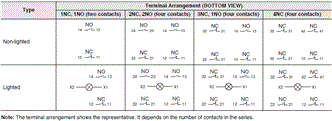

Terminal Arrangement (BOTTOM VIEW)
Terminal connection
Terminal wiring drawings of two-contact Switch Units
A22E Screw Terminal Block types
Certified Standard Ratings
• UL, cUL (File No. E41515)
6 A at 220 VAC, 10 A at 110 VAC
• TÜV (EN60947-5-1) (Low Voltage Directive)
3 A at 220 VAC
• CCC (GB14048.5)
3 A at 240 VAC, 1.5 A at 24 VDC
6 A at 220 VAC, 10 A at 110 VAC
• TÜV (EN60947-5-1) (Low Voltage Directive)
3 A at 220 VAC
• CCC (GB14048.5)
3 A at 240 VAC, 1.5 A at 24 VDC
Certified Standards
| Certification body | Standards | File No. |
|---|---|---|
| UL *1 | UL508, C22.2 No.14 | E41515 |
| TÜV SÜD | EN60947-5-1 (Certified direct opening),
EN60947-5-5 |
Consult your OMRON representative for details. |
| CQC (CCC) | GB/T14048.5 | 2003010303070635 |
| KOSHA *2 | EN60947-5-1 | Consult your OMRON representative for details. |
Note: 1. Only models with NC contacts have a direct opening mechanism.
2. A fuse is not provided.
*1. UL-certification for CSA C22.2 No. 14 has been obtained.
Certification has been obtained for individual Switch Blocks and Lighting Units.
*2. Some models have been certified.
Ratings
Contacts (Standard Load)
|
Rated carry
current (A) |
Rated
voltage (V) |
Rated current (A) | |||
|---|---|---|---|---|---|
|
AC15
(Inductive load) |
AC12
(Resistive load) |
DC13
(Inductive load) |
DC12
(Resistive load) |
||
| 10 | 24 VAC | 10 | 10 | --- | --- |
| 110 VAC | 5 | 10 | |||
| 220 VAC | 3 | 6 | |||
| 380 VAC | 2 | 3 | |||
| 440 VAC | 1 | 2 | |||
| 24 VDC | --- | --- | 1.5 | 10 | |
| 110 VDC | 0.5 | 2 | |||
| 220 VDC | 0.2 | 0.6 | |||
| 380 VDC | 0.1 | 0.2 | |||
Note: 1. Rated current values are determined according to the testing conditions. The above ratings were obtained by
conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3)Operating frequency: 20 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC
conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3)Operating frequency: 20 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC
Contacts (Microload)
| Rated applicable load | 100 mA at 30 VDC (Resistive load) |
|---|---|
| Minimum applicable load | 1 mA at 5 VDC |
LED Lamp
| Rated voltage | Operating voltage | Current value |
|---|---|---|
| 6 VAC/VDC | 6 VAC/VDC ± 5% | Approx. 8 mA |
| 12 VAC/VDC | 12 VAC/VDC ± 5% | |
| 24 VAC/VDC | 24 VAC/VDC ± 5% |
Voltage-reduction lighting
| Rated voltage | Operating voltage | Rated current |
Applicable lamp
(BA9S/Base: 13) |
|---|---|---|---|
| 110 VAC | 100 VAC
(95 to 115 V) |
Approx. 8 mA | LED lamp
A22-24A[] |
| 220 VAC | 200 VAC
(190 to 230 V) |
Characteristics
| Type | Turn-reset | Pull-reset | ||
|---|---|---|---|---|
| Non-lighted model | Lighted model | Non-lighted model | ||
|
Allowable
operating frequency |
Mechanical | 30 operations/minute (One operation consists of set and reset operations.) | ||
| Electrical | 30 operations/minute (One operation consists of set and reset operations.) | |||
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |||
| Contact resistance | 100 mΩ max. (initial value) | |||
|
Dielectric
strength |
Between terminals
of same polarity |
2,500 VAC, 50/60 Hz for 1 min. | ||
|
Between each
terminal and ground |
2,500 VAC, 50/60 Hz for 1 min. | |||
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude (contact separation within 1 ms) | |||
|
Shock
resistance |
Destruction | 1000 m/s2 | ||
| Malfunction | 250 m/s2 max. (contact separation within 1 ms) | |||
| Durability | Mechanical | 300,000 operations min. (One operation consists of set and reset operations.) | ||
| Electrical | 300,000 operations min. (One operation consists of set and reset operations.) | |||
| Ambient operating temperature *1 | -20 to +70°C | -20 to +55°C | -20 to +70°C | |
| Ambient operating humidity | 35 to 85% RH | |||
| Ambient storage temperature | -40 to +70°C | |||
| Degree of protection | IP65 oil-resistant models *2 *3 | IP65 *2 | IP65 oil-resistant models *2 *3 | |
| Electric shock protection class | Class II | |||
| PTI (tracking characteristic) | 175 | |||
| Degree of contamination | 3 (EN60947-5-1) | |||
| Minimum direct opening stroke | 11 mm | |||
| Minimum direct opening force | 45 N | |||
| Conditional short-circuit current | 100 A (EN 60947-5-1) | |||
|
Weight (for a 40-dia. head 1NC/1NO
Operation Unit) |
Approx. 65 g | Approx. 80 g | Approx. 100 g | |
*1. With no icing or condensation.
*2. The degree of protection from the front of the panel.
*3. The degree of protection is IP65 even with an integrated control box, but the system is not oil resistant.
Operating Characteristics
| Item | Turn-reset | Pull-reset |
|---|---|---|
| Total travel force (TTF) | 44.1 N max. | 58.8 N max. |
| Return force (RF) | 0.25 N·m max. * | 58.8 N max. |
| Total travel (TT) | 10 ±1 mm | 5.5 ±1 mm |
* Rotation torque value.
Terminal Arrangement (BOTTOM VIEW)
Terminal connection
Terminal wiring drawings of two-contact Switch Units
last update: January 21, 2022
Product Category
- Safety Components
- Emergency Stop Switches
- A22NE-PD / A22NE-P / A22E
- A165E
Top of page
Products
Menu
About Us
Menu
Solutions
Menu
Privacy
Menu
Services
Menu
Resources
Menu
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
