E2C-EDA

Discontinued On Mar. 2025

E2C-EDA

High Precision Positioning Inductive Proximity Sensor

E2C-EDA

Proximity Sensor with Separate Amplifier Enables Easily Making High-precision Sensitivity Settings.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: July 6, 2018

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensor Heads

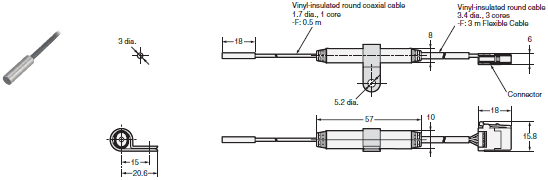

E2C-EDR6-F

E2C-EDA Dimensions 3

E2C-ED01(-F)

E2C-EDA Dimensions 4

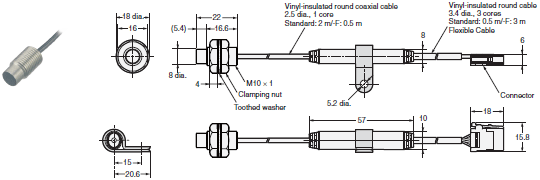

E2C-ED02(-F)

E2C-EDA Dimensions 5

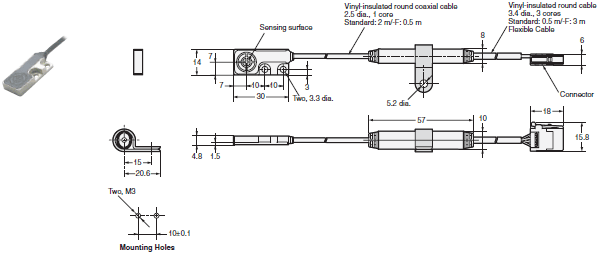

E2C-EM02(-F)

E2C-EDA Dimensions 6

E2C-EM07M(-F)

E2C-EDA Dimensions 7

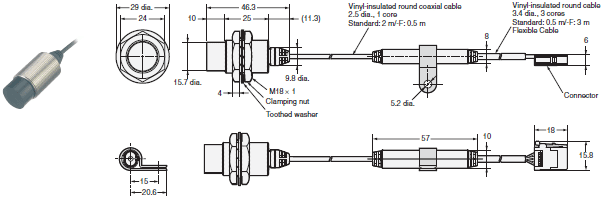

E2C-EV05(-F)

E2C-EDA Dimensions 8

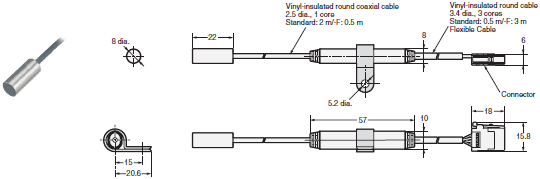

E2C-EM02H

E2C-EDA Dimensions 9

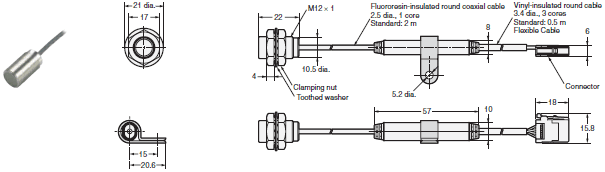

Extension Cables for Sensors Head

E22-XC2R
E22-XC7R

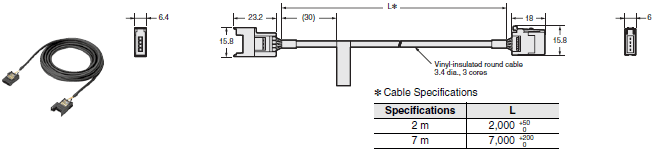

E2C-EDA Dimensions 11

Amplifier Units

Amplifier Units with Cables

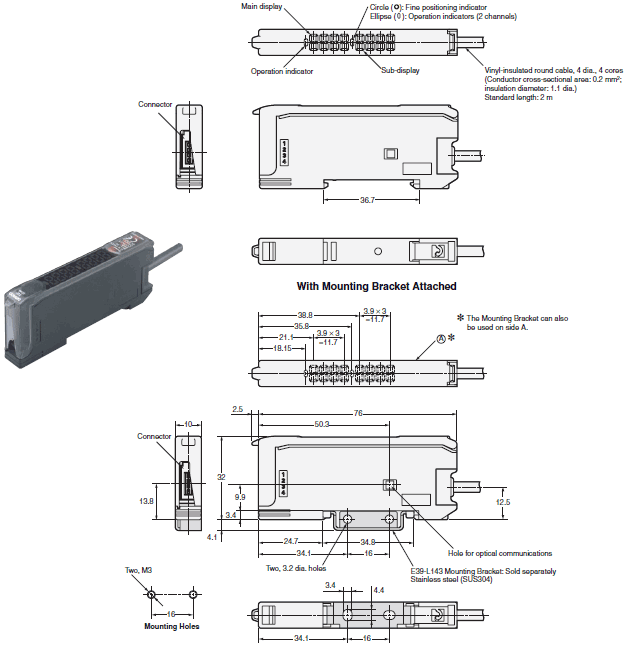

E2C-EDA11
E2C-EDA21

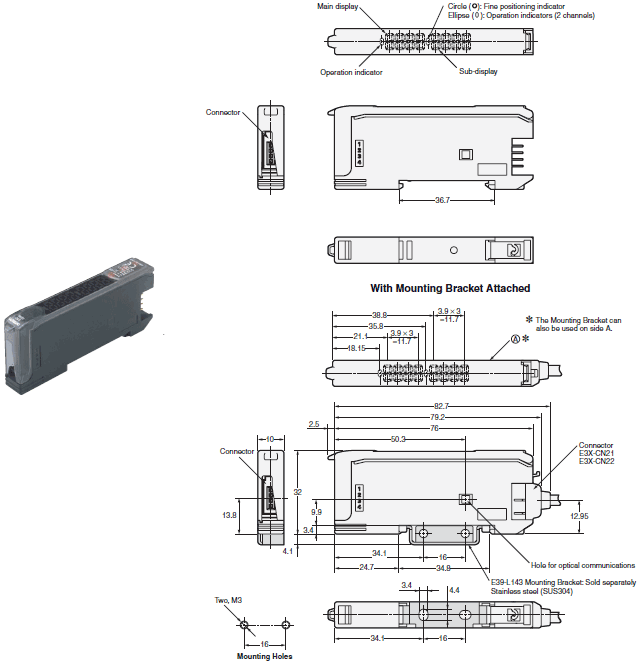

E2C-EDA41
E2C-EDA51

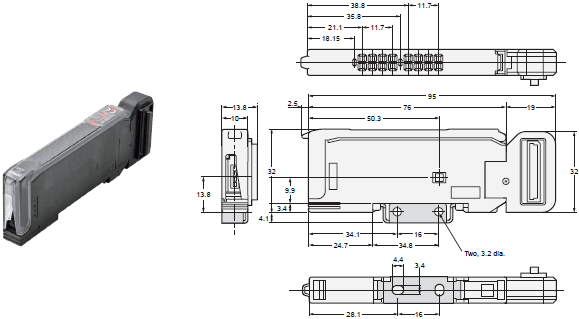

E2C-EDA Dimensions 13

Amplifier Units with Wire-saving Connectors
E2C-EDA6
E2C-EDA7
E2C-EDA8
E2C-EDA9

E2C-EDA Dimensions 14

Amplifier Unit with Connector for Sensor Communications Unit
E2C-EDA0

E2C-EDA Dimensions 15
