NX-ECC

NX-series EtherCAT Coupler Unit

NX-ECC

Flexible System Can Be Achieved with Highspeed, High-precision Remote I/O for EtherCAT

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: February 18, 2019

(Unit: mm)

EtherCAT Coupler Unit

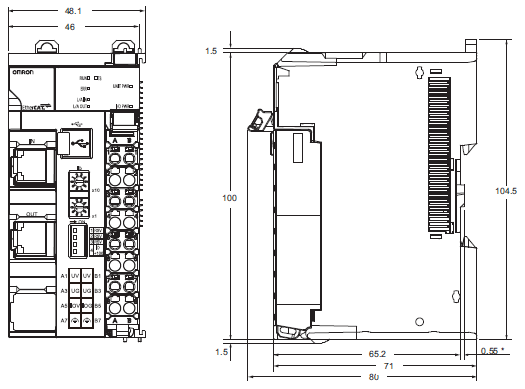

EtherCAT Coupler Unit Only

* The dimension is 1.35 mm for Units with lot numbers through December 2014.

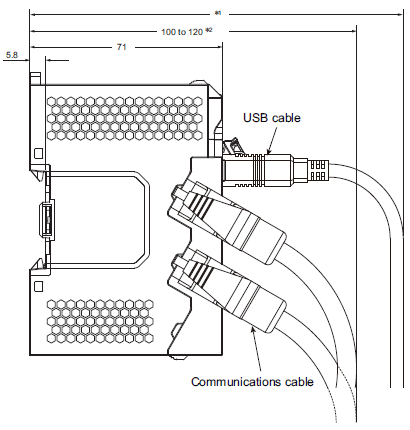

With Cables Connected

*1. This dimension depends on the specifications of the commercially available USB cable. Check the specifications of the USB cable that is used.
*2. This is the dimension from the back of the Unit to the communications cables.
　　　　• 100 mm: When an MPS588-C Connector is used.
　　　　• 120 mm: When an XS6G-T421-1 Connector is used.

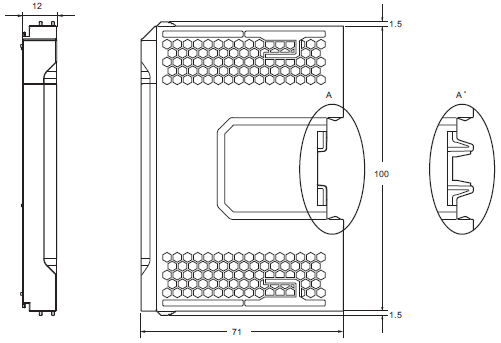

End Cover

* This is the shape for Units with lot numbers through December 2014.
