EE-SX95

Ultra-compact Pre-wired Photomicrosensor (Non-modulated)

EE-SX95

Meeting Customer Needs with Ultracompact Sensors that Mount with M3 Screws

last update: March 2, 2015

Type		Standard	L-shaped	F-shaped	R-shaped	U-shaped
NPN output	Pre-wired models	EE-SX950-[]	EE-SX951-[]	EE-SX952-[]	EE-SX953-[]	EE-SX954-[]
NPN output	Pre-wired connector models	EE-SX950-C1J-R	EE-SX951-C1J-R	EE-SX952-C1J-R	EE-SX953-C1J-R	EE-SX954-C1J-R
PNP output	Pre-wired models	EE-SX950P-[]	EE-SX951P-[]	EE-SX952P-[]	EE-SX953P-[]	EE-SX954P-[]
Sensing distance		5 mm (slot width)
Standard sensing object		Opaque: 1.8 × 0.8 mm min.
Differential travel		0.025 mm max. *1
Light source (wave length)		Infrared LED (940 nm)
Indicator		Light indicator (red LED)
Power supply voltage		5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption		15 mA max.
Control output		Load power supply voltage: 5 to 24 VDC Load current: 50 mA max. OFF current: 0.5 mA max. 50 mA load current with a residual voltage of 0.7 V max. 5 mA load current with a residual voltage of 0.4 V max.
Protection circuit		Load short-circuit protection
Response frequency		1 kHz min. (3 kHz average) *2
Ambient illumination		1,000 lx max. with fluorescent light on the surface of the receiver
Ambient temperature range		Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation)
Ambient humidity range		Operating: 5% to 85% Storage: 5% to 95% (with no icing or condensation)
Vibration resistance (destruction)		10 to 2,000 Hz (peak acceleration: 150m/s²) with a 0.75-mm single amplitude for 2.5 h (15-min periods, 10 cycles) each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection		IEC60529 IP50
Connection method		Pre-wired models (standard length: 1 m), Pre-wired connector models (standard length: 0.3 m)
Weight (packed state)	Pre-wired models	Approx. 15 g
Weight (packed state)	Pre-wired connector models	Approx. 7 g
Materials	Case/cover	Polybutylene terephthalate (PBT)
Materials	Emitter/ receiver	Polycarbonate (PC)

*1. The differential travel is the value when a sensing object is moved in a lateral direction to the slot.

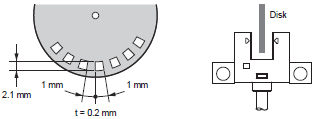

*2. The response frequency was measured by detecting the following rotating disk.

Applicable Connector

Product		Connector with Robot Cable
Model		EE-1016-R
Appearance
Contact resistance		25 mΩ max. (at 10 mA DC and 20 mV max.)
Insertion strength		20 N max.
Surplus strength (housing holding strength)		15 N min.
Cable length		2 m
Ambient temperature range		-25 to 85°C
Materials	Housing	Nylon
Materials	Contact	Phosphor bronze
