Industrial Automation
Discontinued On Mar. 2018
A22K
Key-type Selector Switch (Cylindrical 22/25-dia.)
Install in 22-dia. or 25-dia. Panel Cutout
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
last update: April 2, 2018

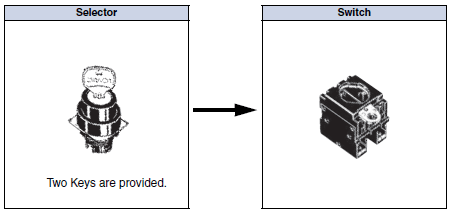

Completely Assembled
Shipped as a set which includes the Selector and Switch.
Key-type Selector Switch (Orders will not be accepted after March 31, 2018.)
| Appearance | Number of
notches |
Reset
method |
Output | Key
release position |
Model |
|---|---|---|---|---|---|
| Key-type Selector Switch
A22K  |
2 notches | Manual | SPST-NO |  |
A22K-2ML-10 |
 |
A22K-2M-10 | ||||
| SPST-NC | |
A22K-2ML-01 | |||
|
A22K-2M-01 | ||||
| SPST-NO + SPST-NC | |
A22K-2ML-11 | |||
|
A22K-2M-11 | ||||
| SPST-NO + SPST-NO | |
A22K-2ML-20 | |||
|
A22K-2M-20 | ||||
| SPST-NC + SPST-NC | |
A22K-2ML-02 | |||
|
A22K-2M-02 | ||||
| Automatic | SPST-NO | |
A22K-2AL-10 | ||
| SPST-NC | A22K-2AL-01 | ||||
| SPST-NO + SPST-NC | A22K-2AL-11 | ||||
| SPST-NO + SPST-NO | A22K-2AL-20 | ||||
| SPST-NC + SPST-NC | A22K-2AL-02 | ||||
| 3 notches | Manual | SPST-NO + SPST-NC | |
A22K-3ML-11 | |
|
A22K-3M-11 | ||||
 |
A22K-3MC-11 | ||||
| SPST-NO + SPST-NO | |
A22K-3ML-20 | |||
|
A22K-3M-20 | ||||
|
A22K-3MC-20 | ||||
| SPST-NC + SPST-NC | |
A22K-3ML-02 | |||
|
A22K-3M-02 | ||||
|
A22K-3MC-02 | ||||
| Automatic | SPST-NO + SPST-NC | |
A22K-3AC-11 | ||
| SPST-NO + SPST-NO | |
A22K-3AC-20 | |||
| SPST-NC + SPST-NC | |
A22K-3AC-02 |
Note: 1. Two Keys are provided.
2. The contact ratings are for standard loads.
2. The contact ratings are for standard loads.
Subassembled
The Selector, Lamp, or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.
Selector (Orders will not be accepted after March 31, 2018.)
Oil-resistant IP65 (Color: Only Black is available)
| Appearance | Number of notches | Reset method | Key release position | Model | |
|---|---|---|---|---|---|
 |
2 notches
 |
Manual | |
 |
A22K-2ML |
 |
A22K-2M | ||||
| Automatic |  |
|
A22K-2AL | ||
3 notches
 |
Manual | |
|
A22K-3ML | |
|
A22K-3M | ||||
 |
A22K-3MC | ||||
| Automatic |  |
|
A22K-3AC | ||
| Automatic (left) |  |
 |
A22K-3AMR | ||
| Automatic (right) |  |
|
A22K-3MAL | ||
Note: Two keys are provided.
Switch (Standard Load)
| Appearance | Classification | Model |
|---|---|---|
 |
SPST-NO | A22-10M |
| SPST-NC | A22-01M | |
| SPST-NO + SPST-NC | A22-11M | |
| SPST-NO + SPST-NO | A22-20M | |
| SPST-NC + SPST-NC | A22-02M |
Accessories
| Appearance | Model |
|---|---|
 |
A22K-K |
Note: Two keys are provided.
