Industrial Automation

Industrial Automation

Discontinued On Apr. 2022

NS Series

Programmable Terminals

NS Series

Even Simpler Equipment Operation with Outstanding Synergy.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

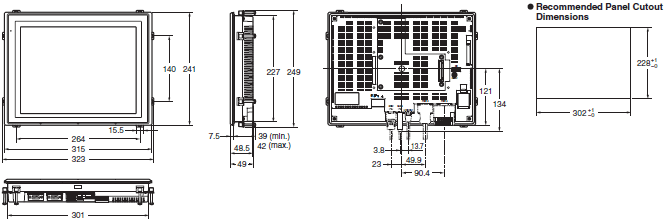

NS15

NS Series Dimensions 1

NS12/10

NS Series Dimensions 2

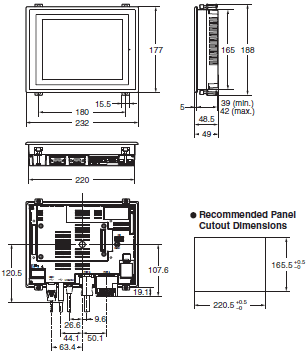

NS8

NS Series Dimensions 3

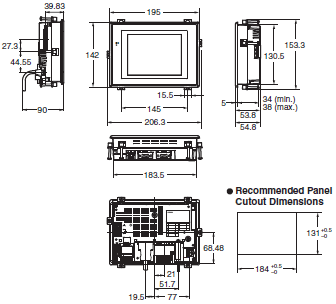

NS5

NS Series Dimensions 4

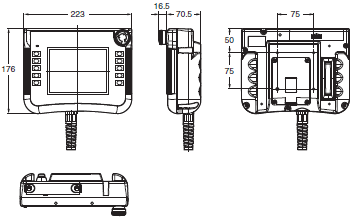

Hand-held NS5

NS Series Dimensions 5

NS-CA001
Video Input Unit

NS Series Dimensions 6

NS-CA002
Video Input Unit

NS Series Dimensions 7

NS-CLK21
Controller Link Interface Unit

NS Series Dimensions 8
