G2R-[]-S (S)

General-purpose Relay

G2R-[]-S (S)

Slim and Space-saving Power Plug-in Relay

Model Number Structure

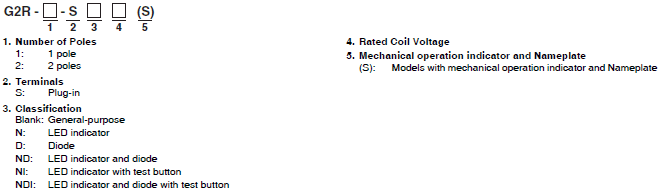

Model Number Legend

G2R-[]-S (S) Lineup 2

Note: Contact your OMRON representative for Relays with gold-plated contacts.

Ordering Information

When your order, specify the rated voltage.

List of Models

Classification Coil ratings Contact form
SPDT DPDT
General-purpose AC 24, 48, 110, 120, 230, 240
DC 6, 12, 24, 48
G2R-1-S (S) G2R-2-S (S)
LED indicator G2R-1-SN (S) G2R-2-SN (S)
LED indicator with test button G2R-1-SNI (S) G2R-2-SNI (S)
Diode DC 6, 12, 24, 48 G2R-1-SD (S) G2R-2-SD (S)
LED indicator and diode G2R-1-SND (S) G2R-2-SND (S)
LED indicator and diode with test button G2R-1-SNDI (S) G2R-2-SNDI (S)

Note: 1. The standard models are compliant with UL/CSA and VDE standards. Also, an EC compliance declaration has
              been made for combinations with the P2RF-[]-E, P2RF-[]-S and P2RF-[]-PU. The Relays bear the CE Marking.
          2. Refer to Connecting Sockets, below, for applicable Socket models.
          3. When ordering, add the rated coil voltage and "(S)" to the model number. Rated coil voltages are given in the
               coil ratings table.

G2R-[]-S (S) Lineup 5

Accessories (Order Separately)

Connecting Sockets

Track/surface-mounting Socket

Applicable
relay
model*1
Mounting
Method
Conductive
part
protection
Terminal
Type
Applicable
crimp terminal/
Electric wire
Exclusive
short bar
(Order
Separately)
Appearance Model
G2R-1-S Mounted
on a DIN
track or
with
screws
Available Push-In Plus
Terminal
Ferrules
Solid wire
Stranded wire
Available 1731_lu_3_1 P2RF-05-PU *2
Screw
terminal
(M3 screw
size)
Forked terminals
Solid wire
Stranded wire
Available 1731_lu_3_2 P2RFZ-05-E *4
Option
(Terminal
cover sold
separately)
*3
Screw
terminal
(M3.5 screw
size)
Round terminals
Forked terminals
Solid wire
Stranded wire
Available 1731_lu_3_3 P2RFZ-05
None None 1731_lu_3_4 P2RF-05
G2R-2-S Mounted
on a DIN
track or
with
screws
Available Push-In Plus
Terminal
Ferrules
Solid wire
Stranded wire
Available 1731_lu_3_5 P2RF-08-PU *2
Screw
terminal
(M3 screw
size)
Forked terminals
Solid wire
Stranded wire
Available 1731_lu_3_6 P2RFZ-08-E *4
Option
(Terminal
cover sold
separately)
*3
Screw
terminal
(M3.5 screw
size)
Round terminals
Forked terminals
Solid wire
Stranded wire
Available 1731_lu_3_7 P2RFZ-08
None None 1731_lu_3_8 P2RF-08

*1.The applicable relay model is a plug-in terminal type.
*2.There are screw mounting holes in the DIN hooks on the P2RF-[][]-PU. Pull out the DIN hook tabs to mount the Sockets
     with screws.
*3.Terminal cover type is P2CZ-Z. (Order Separately) For details, refer to the on below.
*4.The finger-protection type (P2RFZ-[][]-E) is a type in which the terminal cover is integrated into the socket. Round
     terminals cannot be used.
     Use forked terminals or ferrules instead.

Back-mounting Socket

Applicable Relay model Mounting Method Appearance Model
G2R-1-S PCB terminals 1731_lu_4_1 P2R-05P
1731_lu_4_2 P2R-057P
Solder terminals 1731_lu_4_3 P2R-05A
G2R-2-S PCB terminals 1731_lu_4_4 P2R-08P
1731_lu_4_5 P2R-087P
Solder terminals 1731_lu_4_6 P2R-08A

For Push-In Plus Terminal Block Sockets

Short Bars

Applicable
sockets
Pitch Application Shape/external
dimensions
Number
of
poles
L
(Length)
Insulation
color
Short Bars
Model*1
P2RF-05-PU
P2RF-08-PU
7.75
mm
Bridging
contact
terminals
(common)
1731_lu_5_1 2 15.1 Red (R)
Blue (S)
Yellow(Y)
PYDN-7.75-020[]
3 22.85 PYDN-7.75-030[]
4 30.6 PYDN-7.75-040[]
20 154.6 PYDN-7.75-200[]
15.5
mm
For Coil
terminals
1731_lu_5_2 8 115.55 PYDN-15.5-080[]

*1. Replace the box ([]) in the model number with the code for the covering color. []Color selection: R = Red, S = Blue,
      Y = Yellow

Labels

Applicable sockets Model
P2RF-05-PU
P2RF-08-PU
XW5Z-P4.0LB1
(1 sheet/60 pieces)

For Screw Terminal Sockets

Short Bars

Applicable
sockets
Pitch Dimensions (mm) Number
of poles
Insu-
ation
color
Short Bars
Model
Maximum
carry
current
Minimum
order
(set)

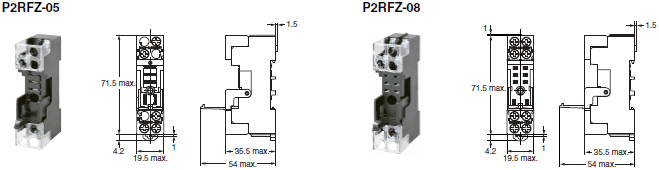

P2RFZ-05-E
P2RFZ-08-E
6.8
mm
1731_lu_7_1 20 Blue
(S)
P2DN-6.8-100S 20 A 1
15.7
mm
1731_lu_7_2 10 P2DN-15.7-100S
P2RFZ-05
P2RFZ-08
8.5
mm
1731_lu_7_3 20 Blue
(S)
P2DN-8.5-100S 20 A 1
19.4
mm
1731_lu_7_4 10 P2DN-19.4-100S

Note: 1. Select an applicable type of short bars by checking applicable socket type, appearance, and dimensions.
         2. Use the Short Bars for crossover wiring within one Socket or between Sockets.
         3. Cannot be used on the P2RF-05, P2RF-08.
         4. Use the short bars on the lower section of the socket.

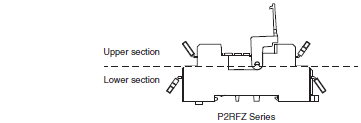

             When using the short bars on the upper section of the socket, insert them so that their heads are pointed upwards
             (see the figure below).
             Otherwise, short bars may interfere with the socket, leading to improper wiring and contact failure.

G2R-[]-S (S) Lineup 17

* One set (order unit) contains 10 short bars and 20 caps.

Accessories for Short Bars (P2DN)

Cap

Short Bars Models Appearance Dimensions (mm) Model
P2DN-8.5-100S
P2DN-19.4-100S
P2DN-6.8-100S
P2DN-15.7-100S
1731_lu_8_1 1731_lu_8_2 P2DN-CP100

For Screw Terminal Sockets (P2RFZ-05/P2RFZ-08)

Terminal covers

Applicable sockets Appearance Model Minimum order (set)
P2RFZ-05
P2RFZ-08
1731_lu_9_1 P2CZ-C

Note: 1. These covers cannot be used for P2RF-05 and P2RF-08.
         2. Use these covers in a combination with P2RFZ-05 and P2RFZ-08.
         3. Do not install short bars (optional) on the upper section (see the figure below).
             Short bars may interfere with the terminal cover, making the terminal cover unusable.

G2R-[]-S (S) Lineup 23

Dimensions with terminal cover

G2R-[]-S (S) Lineup 24

Labels

Applicable sockets Model Minimum order (sheet)
(quantity per sheet)
P2RFZ-[]-E XW5Z-P2.5LB1 5
1 sheet (72 pieces)

Note: This label cannot be applied on sockets other than P2RFZ-[]-E.

Mounting Tracks

Applicable Socket Description Model Minimum order
(quantity)
Track-connecting Socket Mounting track 50 cm (l) × 7.3 mm (t): PFP-50N ---
1 m (l) × 7.3 mm (t): PFP-100N
1 m (l) × 16 mm (t): PFP-100N2
End plate *1 PFP-M 10
Spacer PFP-S
Back-connecting Socket Mounting plate *2 P2R-P 1

*1.When mounting DIN rail, please use End Plate (PFP-M).
*2.Used to mount several P2R-05A and P2R-08A Connecting Sockets side by side.
