H3YN

Solid-state Timer

H3YN

Miniature Timer with Multiple Time Ranges and Multiple Operating Modes

(Unit: mm)

Timers

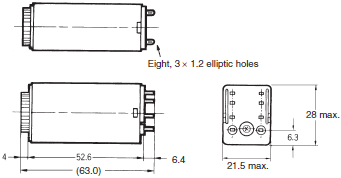

H3YN-2/-21 Front Mounting

H3YN Dimensions 2

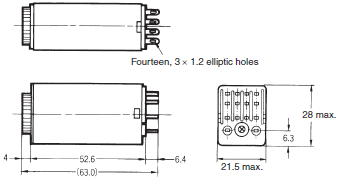

H3YN-4/-41 Front Mounting , H3YN-4-Z/-41-Z

H3YN Dimensions 3

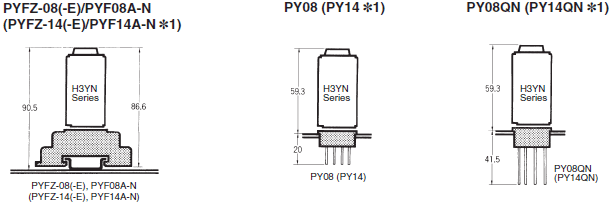

Mounting Height

H3YN Dimensions 4

Note: 1. The are no restrictions to the mounting direction.
*1. Models in parentheses are Connecting Sockets to the H3Y-4, H3YN-4/-41, or H3YN-4-Z/-41-Z.

Accessories (Order Separately)

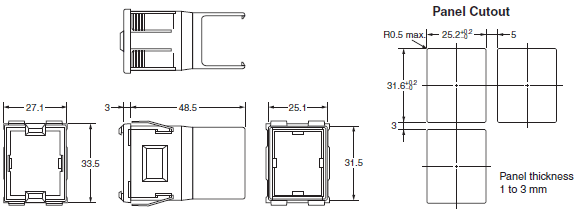

Flush Mounting Adapter

Y92F-78

H3YN Dimensions 6

Note: 1. Push the H3Y in until the Adaptor (Y92F-78) hooks engage with its rear panel.
           2. Do not round the corners of the cutout on the rear panel surface, otherwise the Adaptor (Y92F-78) tabs may
                not engage properly.

Socket Mounting Plates (t = 1.6)

PYP-1

H3YN Dimensions 9

PYP-18

H3YN Dimensions 10

Terminal covers

H3Y/H3YN Series for PYFZ-08
PYCZ-C08

H3YN Dimensions 12

H3Y/H3YN Series for PYFZ-14
PYCZ-C14

H3YN Dimensions 13

Dimensions with terminal cover

PYCZ-C08

H3YN Dimensions 15

PYCZ-C14

H3YN Dimensions 16

Relay Hold-down Clips

H3Y/H3YN Series for for PYFZ-[], PYF[]A Socket
Y92H-3
(Set of Two Clips)

H3YN Dimensions 18

Y92H-4 for PY[] , PYF[]M Socket

H3YN Dimensions 19

H3Y/H3YN Series Track Mounting/Front Connecting Sockets

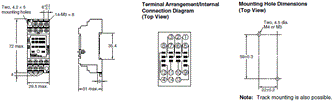

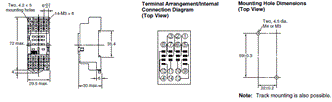

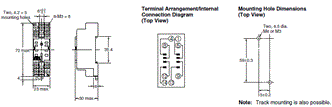

PYFZ-08

H3YN Dimensions 21

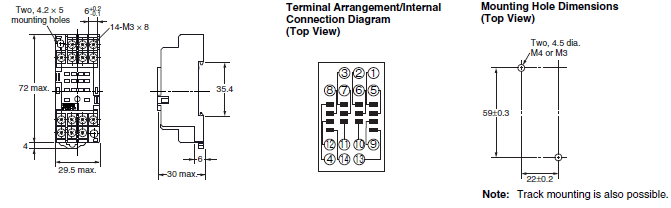

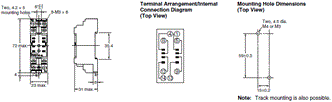

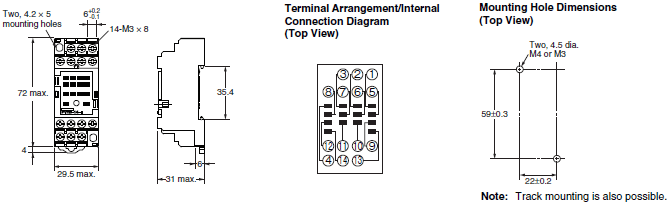

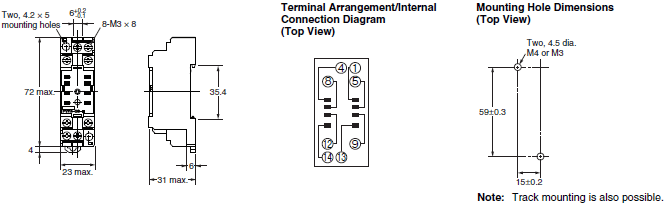

PYFZ-14

H3YN Dimensions 22

PYFZ-08-E
(Finger-protection structure)

H3YN Dimensions 23

PYFZ-14-E
(Finger-protection structure)

H3YN Dimensions 24

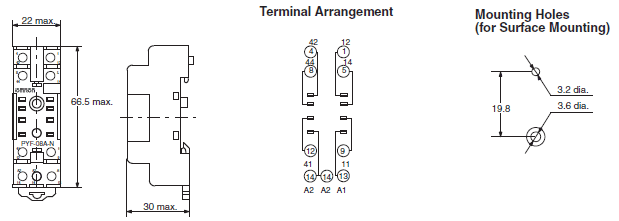

PYF08A-N

H3YN Dimensions 25

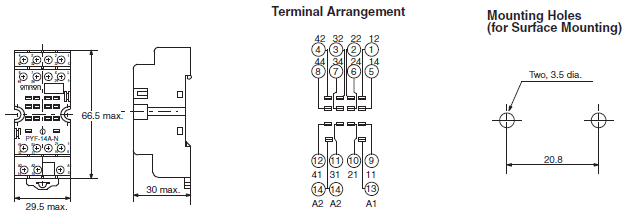

PYF14A-N

H3YN Dimensions 26

H3Y/H3YN Series Back Connecting Sockets

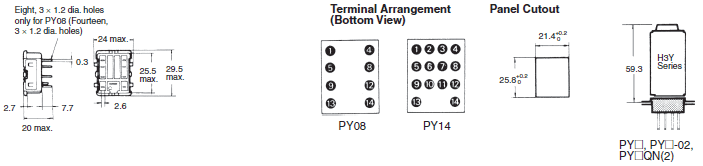

PY08, PY14

H3YN Dimensions 28

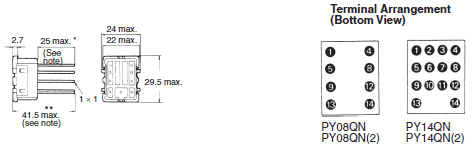

PY08QN, PY14QN
PY08QN(2), PY14QN(2)

H3YN Dimensions 29

Note: With PY[]QN(2), dimension
* should read 20 max. and dimension
** 36.5 max.

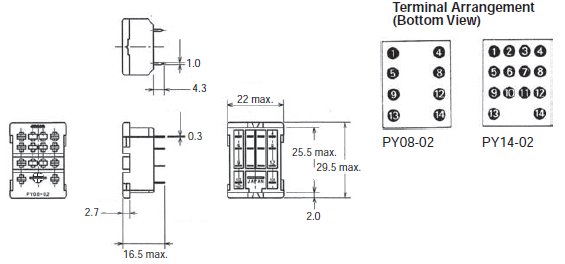

PY08-02, PY14-02

H3YN Dimensions 31

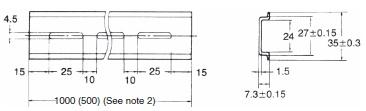

Mounting Track

PFP-100N/PFP-50N (see note 1)

H3YN Dimensions 32

Note: 1. Meets DIN EN50022
           2. This dimension applies to PFP-50N.

End Plate

PFP-M

H3YN Dimensions 34

Spacer

PFP-S

H3YN Dimensions 35
