(Unit: mm)
New Zealand
Phone: 09 358 4400
G3R-I/O
I/O Solid State Relays
SSR with Plug-in Terminals The Same Shape as the G2R-1-S Power Relays
Related Contents
last update: November 8, 2021
Relay
G3R-I/O

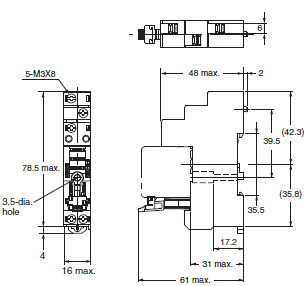

Track/Surface Mounting Sockets
P2RF-05-PU
P2RFZ-05-E
P2RFZ-05
P2RF-05

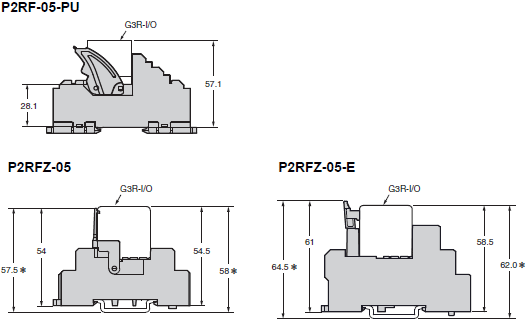

Mounting Height of Relay with Track/Surface Mounting Sockets
* These are values when using the DIN track PFP-[]N.
Heights become higher by approximately 9 mm when using PFP-[]N2.
Heights become higher by approximately 9 mm when using PFP-[]N2.

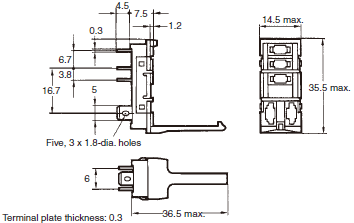

Back-connecting Sockets
P2R-05P (1-pole)
P2R-057P (1-pole)
P2R-05A (1-pole)

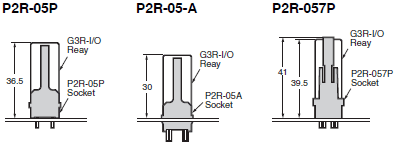

Mounting Height of Relay with Back-connecting Sockets

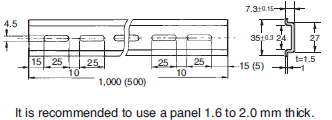

Mounting Tracks
PFP-100N, PFP-50N
PFP-100N2
End Plate
PFP-M
Spacer
PFP-S
Mounting Plate
P2R-P
last update: November 8, 2021
