E3JK (NEW)

Built-in Power Supply Photoelectric Sensor

E3JK (NEW)

Long-distance Photoelectric Sensor That Supports AC/DC Power Supplies

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

Through-beam
E3JK-T[]1[]

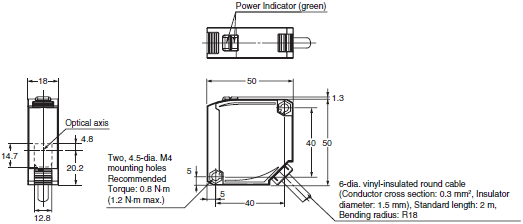

<Emitter>
E3JK-T[]1[]-L

E3JK (NEW) Dimensions 4

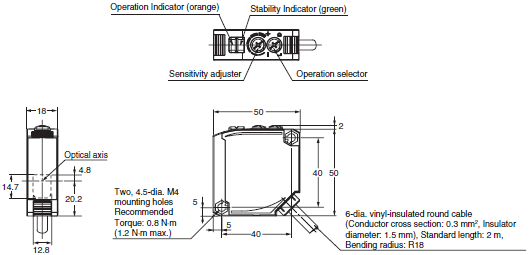

<Receiver>
E3JK-T[]1[]-D

E3JK (NEW) Dimensions 5

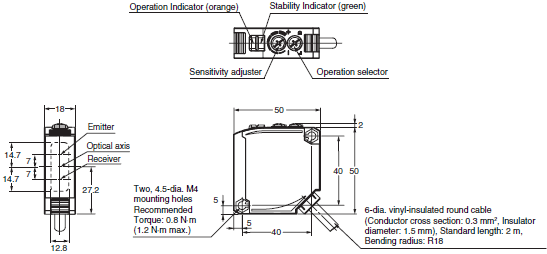

Retro-reflective/Diffuse-reflective
E3JK-R[]1[]
E3JK-D[]1[]

E3JK (NEW) Dimensions 6

Accessories

Mounting Bracket (Order separately)

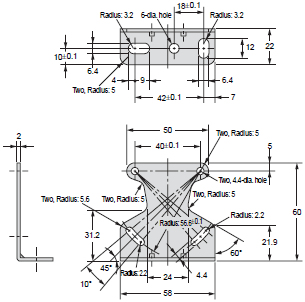

Mounting Bracket
E39-L40

E3JK (NEW) Dimensions 9

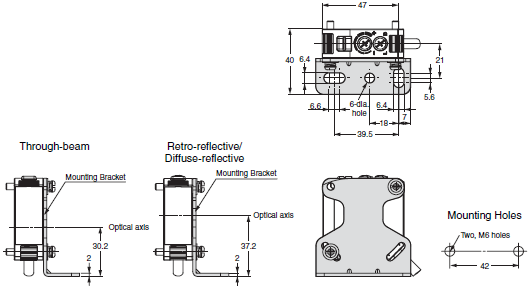

With Mounting Bracket Attached

E3JK (NEW) Dimensions 10

Reflector (Order separately)

E39-R1
E39-R1S

E3JK (NEW) Dimensions 12

Material:
Reflective surface: acrylic
Rear surface: ABS

E39-R2

E3JK (NEW) Dimensions 13

Material:
Reflective surface: acrylic
Rear surface: ABS
