Single-phase Current Relay
last update: April 1, 2014
(Unit: mm)

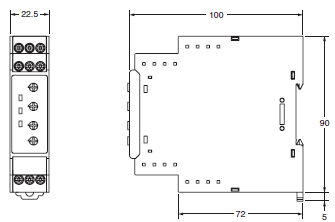

K8AK-AS1
K8AK-AS2
K8AK-AS3

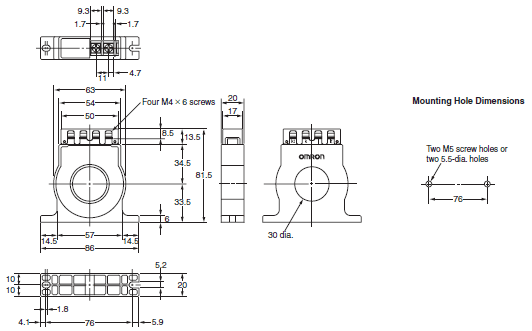

K8AC-CT200L
Note: The OMRON Current Transformer (CT) is designed to be used with the K8AK-AS3.
Use terminals k and l for connections.
(Terminals kt and lt are not used.)

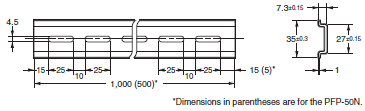

PFP-100N
PFP-50N
