MY-GS

Miniature Power Relays

MY-GS

Mechanical Indicators Added as a Standard Feature to Our Best-selling MY General-purpose Relays

last update: August 1, 2023

(Unit: mm)

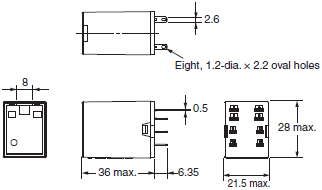

Relays

MY2-GS-R
MY2N-GS-R
MY2N-D2-GS-R
MY2N-CR-GS-R

MY-GS Dimensions 2

MY2IN-GS-R
MY2IN-D2-GS-R
MY2IN-CR-GS-R

MY-GS Dimensions 3

MY4-GS-R
MY4N-GS-R
MY4N-D2-GS-R
MY4N-CR-GS-R

MY-GS Dimensions 4

MY4IN-GS-R
MY4IN-D2-GS-R
MY4IN-CR-GS-R

MY-GS Dimensions 5

Options (Order Separately)

Connection Sockets

Front-mounting Sockets

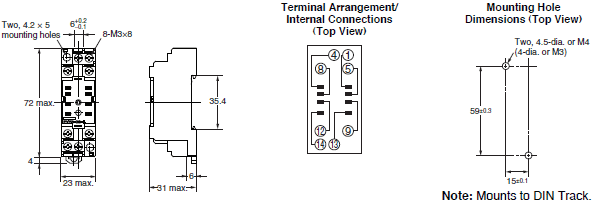

PYFZ-08-E

MY-GS Dimensions 9

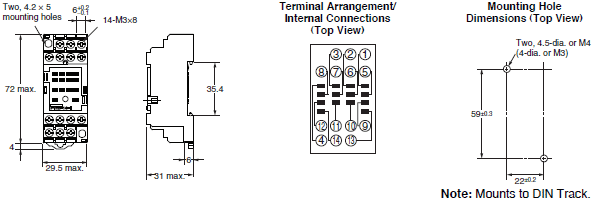

PYFZ-14-E

MY-GS Dimensions 10

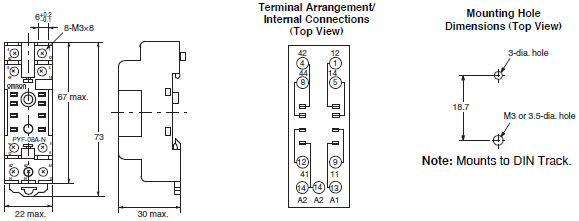

PYF08A-N

MY-GS Dimensions 11

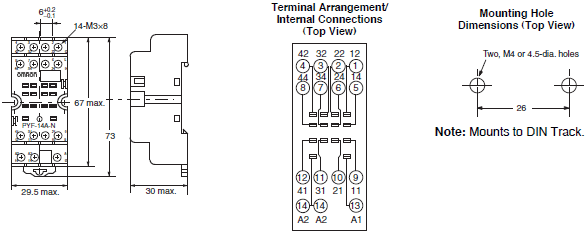

PYF14A-N

MY-GS Dimensions 12

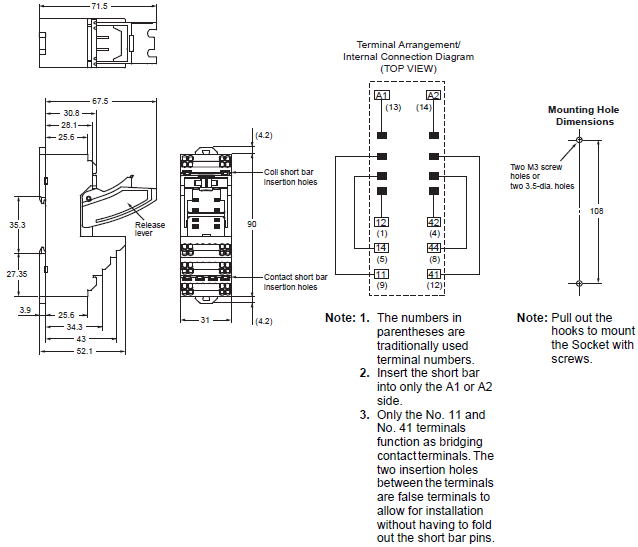

PYF-08-PU

MY-GS Dimensions 13

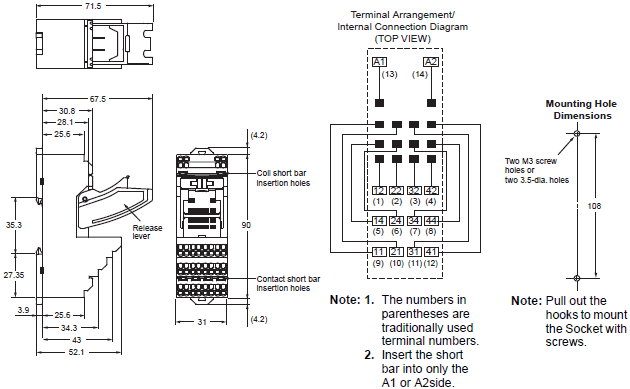

PYF-14-PU

MY-GS Dimensions 14

Back-mounting Sockets

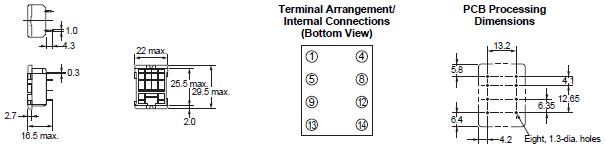

PY08-02

MY-GS Dimensions 16

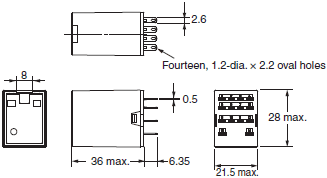

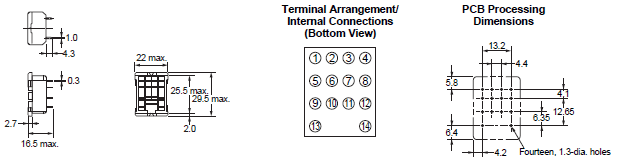

PY14-02

MY-GS Dimensions 17

Socket Accessories

Hold-down Clips

PYC-A1

Set of 2 clips

MY-GS Dimensions 20

PYC-P

MY-GS Dimensions 21

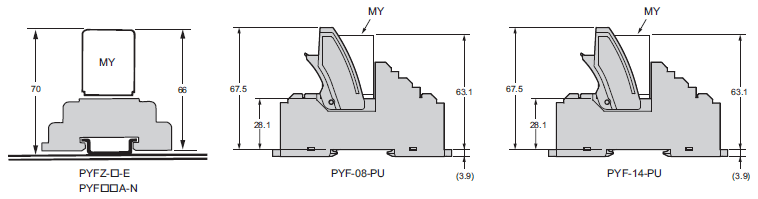

Mounting Heights with Sockets

Front-mounting Sockets

MY-GS Dimensions 23

Back-mounting Sockets

MY-GS Dimensions 24
