G2RV-SR

Slim I/O Relay

G2RV-SR

Our Value Design Products Increase the Value of Your Control Panels. Global standard size, low profile slim I/O relay with width 6.2 mm.

(Unit: mm)

Slim I/O Relay + socket

Push-In Plus Terminal Block

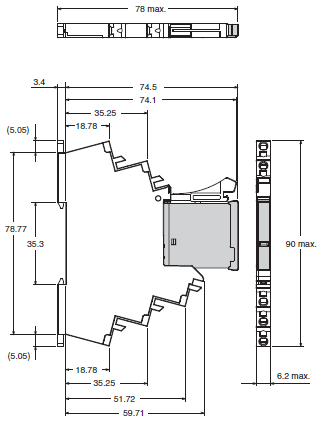

Models without latching lever (without test switch)
G2RV-SR500
G2RV-SR500-AP

G2RV-SR Dimensions 2

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Seet.

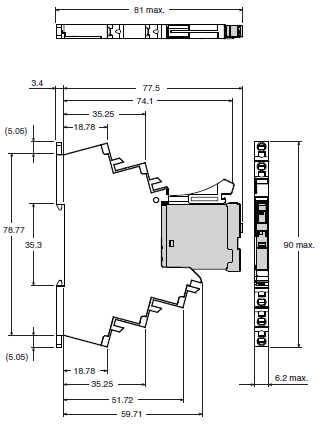

Models with latching lever (with test switch)
G2RV-SR501

G2RV-SR Dimensions 4

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Screw terminal

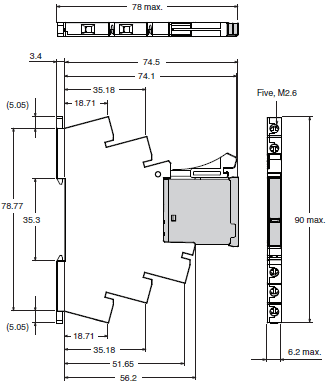

Models without latching lever (without test switch)
G2RV-SR700
G2RV-SR700-AP

G2RV-SR Dimensions 7

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

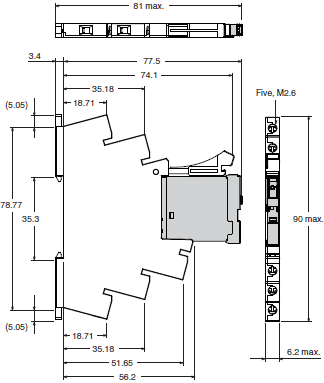

Models with latching lever (with test switch)
G2RV-SR701

G2RV-SR Dimensions 9

Note: For recommended ferrules, crimp tools, and types and gauges of wires,
         refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Relay for maintenance

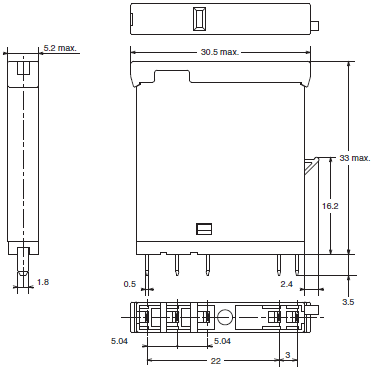

Models without latching lever
G2RV-1-S-G
G2RV-1-S-AP-G

G2RV-SR Dimensions 12

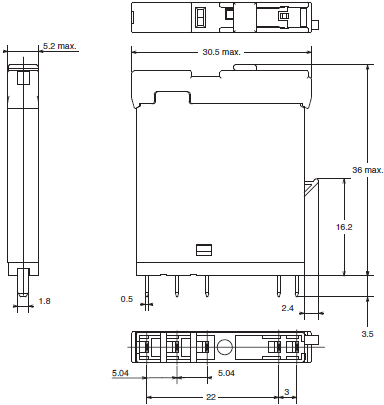

Models with latching lever (test switch)
G2RV-1-SI-G

G2RV-SR Dimensions 13

Accessories (order separately)

PLC interface unit

Push-IN
P2RVC-8-I-5(-1)
P2RVC-8-O-5(-1)

G2RV-SR Dimensions 16

Screw
P2RVC-8-I-7-1
P2RVC-8-O-7-1

G2RV-SR Dimensions 17

Except for PLC interface unit

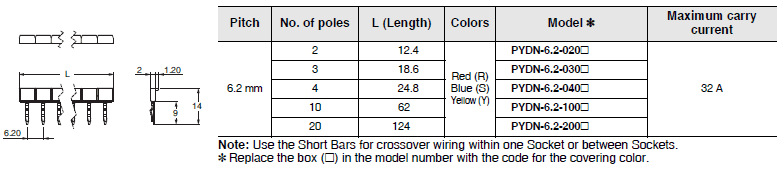

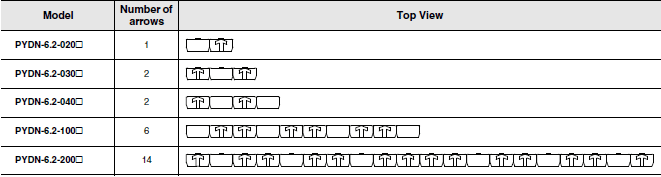

Short Bars
PYDN-6.2-[][] (6.2 mm)

G2RV-SR Dimensions 19
G2RV-SR Dimensions 20

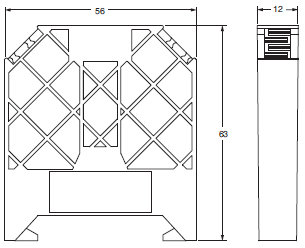

Separate Plate
XW5Z-EP12

G2RV-SR Dimensions 21
