S8VK-X

Switch Mode Power Supply (60/120/240/480-W Models)

S8VK-X

EtherNet/IP, Modbus TCP-Compatible Maximizing System Availability Through the Connecting of Equipment to IoT

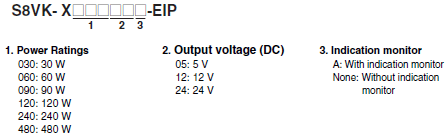

Model Number Structure

Model Number Legend

Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.

S8VK-X Lineup 2

Ordering Information

Note: For details on normal stock models, contact your nearest OMRON representative.

With Indication Monitor

Power rating Rated input voltage Rated output
voltage (DC)
Rated output
current
Maximum boost
current
Model number
90 W 100 to 240 VAC
(allowable range:
85 to 264 VAC,
90 to 350 VDC)
24 V 3.75 A --- S8VK-X09024A-EIP
120 W 24 V 5 A 6 A S8VK-X12024A-EIP
240 W 24 V 10 A 15 A S8VK-X24024A-EIP
480 W 24 V 20 A 30 A S8VK-X48024A-EIP

Without Indication Monitor

Power rating Rated input voltage Rated output
voltage (DC)
Rated output
current
Maximum boost
current
Model number
30 W 100 to 240 VAC
(allowable range:
85 to 264 VAC,
90 to 350 VDC)
5 V 5 A *1 6 A S8VK-X03005-EIP
60 W 12 V 4.5 A *2 5.4 A S8VK-X06012-EIP
24 V 2.5 A 3 A S8VK-X06024-EIP
90 W 24 V 3.75 A --- S8VK-X09024-EIP
120 W 24 V 5 A 6 A S8VK-X12024-EIP
240 W 24 V 10 A 15 A S8VK-X24024-EIP
480 W 24 V 20 A 30 A S8VK-X48024-EIP

*1. Output power is 25 W at rated output current.
*2. Output power is 54 W at rated output current.

Mounting Brackets (Order Separately)

Name Model number
Front-mounting bracket (For 30 W and 60 W models) S82Y-VS10F
Side-mounting bracket (For 30 W and 60 W models) S82Y-VS10S
Front-mounting bracket (For 240 W and 480 W models) S82Y-VK10F

DIN Rail Mounting (Order Separately)

Part name Model number
Mounting Rail (Material: Aluminum) PFP-100N
PFP-50N
PFP-100N2
End Plate PFP-M

EtherNet/IP communication cable recommended parts (Order Separately)

Please use a Category 5 or higher STP cable (shielded twisted pair cable).

Cable with Connectors

Item Recommended
manufacturer
Cable
length (m)
Model
Wire Gauge and Number
of Pairs:
AWG26, 4-pair Cable
Cable Sheath material:
LSZH *2
Cable with Connectors on
Both Ends (RJ45/RJ45)
Standard RJ45 plug type *1
Cable color: Yellow *3
3687_lu_8_1
OMRON 0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
Wire Gauge and Number
of Pairs:
AWG22, 2-pair Cable
Cable with Connectors on
Both Ends (RJ45/RJ45)
Rugged RJ45 plug type *1
Cable color: Light blue
3687_lu_8_2
OMRON 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K

*1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m,
      7.5 m, 10 m, 15 m, 20 m.
      Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
      For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
*3. Cable colors are available in yellow, green, and blue. The last character of the model changes to "-G" or "-B".

Cable/Connector

Part name Manufacturer Model
Cable Hitachi Metals, Ltd. NETSTAR-C5E SA 0.5 × 4P CP *
RJ45 connector Panduit Corporation MPS588-C *

* It is recommended to use the cable and connector in combination described above.

Recommended Industrial Switching Hubs (Order Separately)

Name Shape Functions Number of ports Model
Industrial Switching Hubs 3687_lu_7_1 Quality of Service (QoS):
EtherNet/IP control data priority
10/100BASE-TX, Auto-Negotiation
5 W4S1-05D
