E8PC

IoT Pressure Sensors

E8PC

Detect Signs of Abnormalities in Cooling Water and Hydraulic Oil by Simultaneous Measurement of “Pressure + Temperature”

(Unit: mm)

Sensors

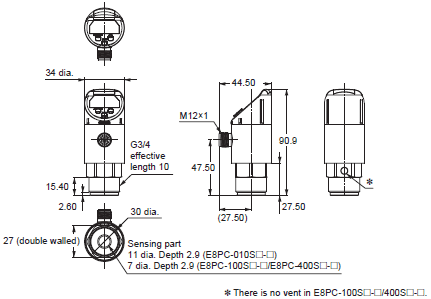

IoT Pressure Sensor

E8PC-[][][]-E

E8PC Dimensions 3

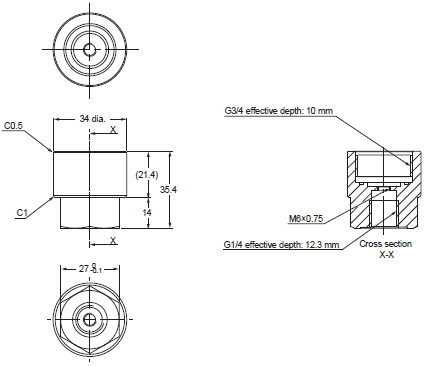

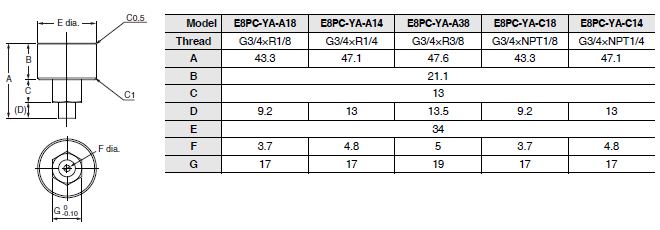

Adapter

E8PC-YA-A[][]
E8PC-YA-C[][]

E8PC Dimensions 5

E8PC-YA-B14N

E8PC Dimensions 6

Throttle

E8PC-YS

E8PC Dimensions 8

E8PC-YS-N

E8PC Dimensions 9

O-ring

E8PC-YL-1

E8PC Dimensions 11

E8PC-YL-2

E8PC Dimensions 12

E8PC-YL-3

E8PC Dimensions 13

Cable

Refer to E8FC Dimensions.
