Welding Proximity Sensor
Stable detection in lines containing both aluminum and iron
Related Contents
Application Solutions
last update: September 1, 2025

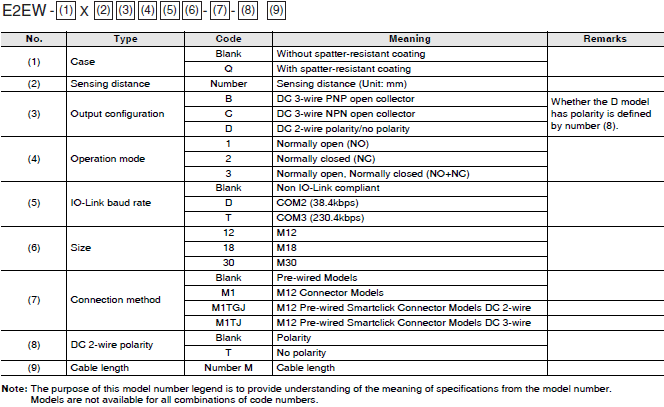

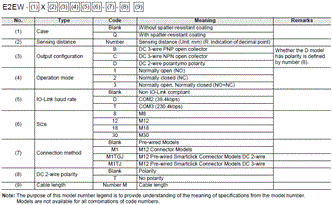

E2EW Series Model Number Legend
Ordering Information
[PREMIUM Model]
E2EW Series (Quadruple distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection
method |
Operation
mode |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M12
(7 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-X7B1T12 2M * | E2EW-X7C112 2M |
| NC | E2EW-X7B212 2M | E2EW-X7C212 2M | ||
| NO+NC | E2EW-X7B3T12 2M * | E2EW-X7C312 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X7B1T12-M1TJ 0.3M * | E2EW-X7C112-M1TJ 0.3M | |
| NC | E2EW-X7B212-M1TJ 0.3M | E2EW-X7C212-M1TJ 0.3M | ||
| NO+NC | E2EW-X7B3T12-M1TJ 0.3M * | E2EW-X7C312-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X7B1T12-M1 * | E2EW-X7C112-M1 | |
| NC | E2EW-X7B212-M1 | E2EW-X7C212-M1 | ||
| NO+NC | E2EW-X7B3T12-M1 * | E2EW-X7C312-M1 | ||
| M18
(12 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-X12B1T18 2M * | E2EW-X12C118 2M |
| NC | E2EW-X12B218 2M | E2EW-X12C218 2M | ||
| NO+NC | E2EW-X12B3T18 2M * | E2EW-X12C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X12B1T18-M1TJ 0.3M * | E2EW-X12C118-M1TJ 0.3M | |
| NC | E2EW-X12B218-M1TJ 0.3M | E2EW-X12C218-M1TJ 0.3M | ||
| NO+NC | E2EW-X12B3T18-M1TJ 0.3M * | E2EW-X12C318-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X12B1T18-M1 * | E2EW-X12C118-M1 | |
| NC | E2EW-X12B218-M1 | E2EW-X12C218-M1 | ||
| NO+NC | E2EW-X12B3T18-M1 * | E2EW-X12C318-M1 | ||
| M30
(22 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-X22B1T30 2M * | E2EW-X22C130 2M |
| NC | E2EW-X22B230 2M | E2EW-X22C230 2M | ||
| NO+NC | E2EW-X22B3T30 2M * | E2EW-X22C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X22B1T30-M1TJ 0.3M * | E2EW-X22C130-M1TJ 0.3M | |
| NC | E2EW-X22B230-M1TJ 0.3M | E2EW-X22C230-M1TJ 0.3M | ||
| NO+NC | E2EW-X22B3T30-M1TJ 0.3M * | E2EW-X22C330-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X22B1T30-M1 * | E2EW-X22C130-M1 | |
| NC | E2EW-X22B230-M1 | E2EW-X22C230-M1 | ||
| NO+NC | E2EW-X22B3T30-M1 * | E2EW-X22C330-M1 | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EW-X7B1T12 5M)
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. Models in "*" are equipped with IO-Link (COM3). For IO-Link (COM2), select a model number with the format of
"E2EW-X[][][]D[]" (Example: E2EW-X7B1D12 2M).
Operation mode NO can be changed to NC via IO-Link communications.
3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
2. Models in "*" are equipped with IO-Link (COM3). For IO-Link (COM2), select a model number with the format of
"E2EW-X[][][]D[]" (Example: E2EW-X7B1D12 2M).
Operation mode NO can be changed to NC via IO-Link communications.
3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
E2EW Series (Triple distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection
method |
Operation
mode |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M12
(6 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-X6B1T12 2M * | E2EW-X6C112 2M |
| NC | E2EW-X6B212 2M | E2EW-X6C212 2M | ||
| NO+NC | E2EW-X6B3T12 2M * | E2EW-X6C312 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X6B1T12-M1TJ 0.3M * | E2EW-X6C112-M1TJ 0.3M | |
| NC | E2EW-X6B212-M1TJ 0.3M | E2EW-X6C212-M1TJ 0.3M | ||
| NO+NC | E2EW-X6B3T12-M1TJ 0.3M * | E2EW-X6C312-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X6B1T12-M1 * | E2EW-X6C112-M1 | |
| NC | E2EW-X6B212-M1 | E2EW-X6C212-M1 | ||
| NO+NC | E2EW-X6B3T12-M1 * | E2EW-X6C312-M1 | ||
| M18
(10 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-X10B1T18 2M * | E2EW-X10C118 2M |
| NC | E2EW-X10B218 2M | E2EW-X10C218 2M | ||
| NO+NC | E2EW-X10B3T18 2M * | E2EW-X10C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X10B1T18-M1TJ 0.3M * | E2EW-X10C118-M1TJ 0.3M | |
| NC | E2EW-X10B218-M1TJ 0.3M | E2EW-X10C218-M1TJ 0.3M | ||
| NO+NC | E2EW-X10B3T18-M1TJ 0.3M * | E2EW-X10C318-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X10B1T18-M1 * | E2EW-X10C118-M1 | |
| NC | E2EW-X10B218-M1 | E2EW-X10C218-M1 | ||
| NO+NC | E2EW-X10B3T18-M1 * | E2EW-X10C318-M1 | ||
| M30
(20 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-X20B1T30 2M * | E2EW-X20C130 2M |
| NC | E2EW-X20B230 2M | E2EW-X20C230 2M | ||
| NO+NC | E2EW-X20B3T30 2M * | E2EW-X20C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X20B1T30-M1TJ 0.3M * | E2EW-X20C130-M1TJ 0.3M | |
| NC | E2EW-X20B230-M1TJ 0.3M | E2EW-X20C230-M1TJ 0.3M | ||
| NO+NC | E2EW-X20B3T30-M1TJ 0.3M * | E2EW-X20C330-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X20B1T30-M1 * | E2EW-X20C130-M1 | |
| NC | E2EW-X20B230-M1 | E2EW-X20C230-M1 | ||
| NO+NC | E2EW-X20B3T30-M1 * | E2EW-X20C330-M1 | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EW-X6B1T12 5M)
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. Models in "*" are equipped with IO-Link (COM3). For IO-Link (COM2), select a model number with the format of
"E2EW-X[][][]D[]" (Example: E2EW-X6B1D12 2M).
Operation mode NO can be changed to NC via IO-Link communications.
3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
2. Models in "*" are equipped with IO-Link (COM3). For IO-Link (COM2), select a model number with the format of
"E2EW-X[][][]D[]" (Example: E2EW-X6B1D12 2M).
Operation mode NO can be changed to NC via IO-Link communications.
3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
E2EW-Q Series (Spatter-resistant Quadruple distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection
method |
Operation
mode |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M12
(7 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-QX7B1T12 2M * | E2EW-QX7C112 2M |
| NC | E2EW-QX7B212 2M | E2EW-QX7C212 2M | ||
| NO+NC | E2EW-QX7B3T12 2M * | E2EW-QX7C312 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX7B1T12-M1TJ 0.3M * | E2EW-QX7C112-M1TJ 0.3M | |
| NC | E2EW-QX7B212-M1TJ 0.3M | E2EW-QX7C212-M1TJ 0.3M | ||
| NO+NC | E2EW-QX7B3T12-M1TJ 0.3M * | E2EW-QX7C312-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-QX7B1T12-M1 * | E2EW-QX7C112-M1 | |
| NC | E2EW-QX7B212-M1 | E2EW-QX7C212-M1 | ||
| NO+NC | E2EW-QX7B3T12-M1 * | E2EW-QX7C312-M1 | ||
| M18
(12 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-QX12B1T18 2M * | E2EW-QX12C118 2M |
| NC | E2EW-QX12B218 2M | E2EW-QX12C218 2M | ||
| NO+NC | E2EW-QX12B3T18 2M * | E2EW-QX12C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX12B1T18-M1TJ 0.3M * | E2EW-QX12C118-M1TJ 0.3M | |
| NC | E2EW-QX12B218-M1TJ 0.3M | E2EW-QX12C218-M1TJ 0.3M | ||
| NO+NC | E2EW-QX12B3T18-M1TJ 0.3M * | E2EW-QX12C318-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-QX12B1T18-M1 * | E2EW-QX12C118-M1 | |
| NC | E2EW-QX12B218-M1 | E2EW-QX12C218-M1 | ||
| NO+NC | E2EW-QX12B3T18-M1 * | E2EW-QX12C318-M1 | ||
| M30
(22 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-QX22B1T30 2M * | E2EW-QX22C130 2M |
| NC | E2EW-QX22B230 2M | E2EW-QX22C230 2M | ||
| NO+NC | E2EW-QX22B3T30 2M * | E2EW-QX22C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX22B1T30-M1TJ 0.3M * | E2EW-QX22C130-M1TJ 0.3M | |
| NC | E2EW-QX22B230-M1TJ 0.3M | E2EW-QX22C230-M1TJ 0.3M | ||
| NO+NC | E2EW-QX22B3T30-M1TJ 0.3M * | E2EW-QX22C330-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-QX22B1T30-M1 * | E2EW-QX22C130-M1 | |
| NC | E2EW-QX22B230-M1 | E2EW-QX22C230-M1 | ||
| NO+NC | E2EW-QX22B3T30-M1 * | E2EW-QX22C330-M1 | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EW-QX7B1T12 5M)
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. Models in "*" are equipped with IO-Link (COM3). For IO-Link (COM2), select a model number with the format of
"E2EW-QX[][][]D[]" (Example: E2EW-QX7B1D12 2M).
Operation mode NO can be changed to NC via IO-Link communications.
3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
E2EW-Q Series (Spatter-resistant Triple distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection
method |
Operation
mode |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M12
(6 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-QX6B1T12 2M * | E2EW-QX6C112 2M |
| NC | E2EW-QX6B212 2M | E2EW-QX6C212 2M | ||
| NO+NC | E2EW-QX6B3T12 2M * | E2EW-QX6C312 2M | ||
| M12 Pre-wired
Smartclick Connector 0.3 m) |
NO | E2EW-QX6B1T12-M1TJ 0.3M * | E2EW-QX6C112-M1TJ 0.3M | |
| NC | E2EW-QX6B212-M1TJ 0.3M | E2EW-QX6C212-M1TJ 0.3M | ||
| NO+NC | E2EW-QX6B3T12-M1TJ 0.3M * | E2EW-QX6C312-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-QX6B1T12-M1 * | E2EW-QX6C112-M1 | |
| NC | E2EW-QX6B212-M1 | E2EW-QX6C212-M1 | ||
| NO+NC | E2EW-QX6B3T12-M1 * | E2EW-QX6C312-M1 | ||
| M18
(10 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-QX10B1T18 2M * | E2EW-QX10C118 2M |
| NC | E2EW-QX10B218 2M | E2EW-QX10C218 2M | ||
| NO+NC | E2EW-QX10B3T18 2M * | E2EW-QX10C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX10B1T18-M1TJ 0.3M * | E2EW-QX10C118-M1TJ 0.3M | |
| NC | E2EW-QX10B218-M1TJ 0.3M | E2EW-QX10C218-M1TJ 0.3M | ||
| NO+NC | E2EW-QX10B3T18-M1TJ 0.3M * | E2EW-QX10C318-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-QX10B1T18-M1 * | E2EW-QX10C118-M1 | |
| NC | E2EW-QX10B218-M1 | E2EW-QX10C218-M1 | ||
| NO+NC | E2EW-QX10B3T18-M1 * | E2EW-QX10C318-M1 | ||
| M30
(20 mm) |
Pre-wired (2 m)
*1 |
NO | E2EW-QX20B1T30 2M * | E2EW-QX20C130 2M |
| NC | E2EW-QX20B230 2M | E2EW-QX20C230 2M | ||
| NO+NC | E2EW-QX20B3T30 2M * | E2EW-QX20C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX20B1T30-M1TJ 0.3M * | E2EW-QX20C130-M1TJ 0.3M | |
| NC | E2EW-QX20B230-M1TJ 0.3M | E2EW-QX20C230-M1TJ 0.3M | ||
| NO+NC | E2EW-QX20B3T30-M1TJ 0.3M * | E2EW-QX20C330-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-QX20B1T30-M1 * | E2EW-QX20C130-M1 | |
| NC | E2EW-QX20B230-M1 | E2EW-QX20C230-M1 | ||
| NO+NC | E2EW-QX20B3T30-M1 * | E2EW-QX20C330-M1 | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EW-QX6B1T12 5M)
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. Models in "*" are equipped with IO-Link (COM3). For IO-Link (COM2), select a model number with the format of
"E2EW-QX[][][]D[]" (Example: E2EW-QX6B1D12 2M).
Operation mode NO can be changed to NC via IO-Link communications.
3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
[BASIC Model]
E2EW Series (Double distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection method | Operation
mode *2 |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M12
(3 mm) |
Pre-wired (2 m) *1 | NO | E2EW-X3B112 2M | E2EW-X3C112 2M |
| NO+NC | E2EW-X3B312 2M | E2EW-X3C312 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X3B112-M1TJ 0.3M | E2EW-X3C112-M1TJ 0.3M | |
| NO+NC | E2EW-X3B312-M1TJ 0.3M | E2EW-X3C312-M1TJ 0.3M | ||
| M18
(7 mm) |
Pre-wired (2 m) *1 | NO | E2EW-X7B118 2M | E2EW-X7C118 2M |
| NO+NC | E2EW-X7B318 2M | E2EW-X7C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X7B118-M1TJ 0.3M | E2EW-X7C118-M1TJ 0.3M | |
| NO+NC | E2EW-X7B318-M1TJ 0.3M | E2EW-X7C318-M1TJ 0.3M | ||
| M30
(12 mm) |
Pre-wired (2 m) *1 | NO | E2EW-X12B130 2M | E2EW-X12C130 2M |
| NO+NC | E2EW-X12B330 2M | E2EW-X12C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X12B130-M1TJ 0.3M | E2EW-X12C130-M1TJ 0.3M | |
| NO+NC | E2EW-X12B330-M1TJ 0.3M | E2EW-X12C330-M1TJ 0.3M | ||
E2EW Series (Single distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection method | Operation
mode *2 |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M8
(1.5 mm) |
Pre-wired (2 m) | NO | E2EW-X1R5B18 2M | E2EW-X1R5C18 2M |
| M12 Connector | NO | E2EW-X1R5B18-M1 | E2EW-X1R5C18-M1 | |
| M12
(2 mm) |
Pre-wired (2 m) *1 | NO | E2EW-X2B112 2M | E2EW-X2C112 2M |
| NO+NC | E2EW-X2B312 2M | E2EW-X2C312 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X2B112-M1TJ 0.3M | E2EW-X2C112-M1TJ 0.3M | |
| NO+NC | E2EW-X2B312-M1TJ 0.3M | E2EW-X2C312-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X2B112-M1 | E2EW-X2C112-M1 | |
| NC | E2EW-X2B212-M1 | E2EW-X2C212-M1 | ||
| M18
(5 mm) |
Pre-wired (2 m) *1 | NO | E2EW-X5B118 2M | E2EW-X5C118 2M |
| NO+NC | E2EW-X5B318 2M | E2EW-X5C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X5B118-M1TJ 0.3M | E2EW-X5C118-M1TJ 0.3M | |
| NO+NC | E2EW-X5B318-M1TJ 0.3M | E2EW-X5C318-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X5B118-M1 | E2EW-X5C118-M1 | |
| NC | E2EW-X5B218-M1 | E2EW-X5C218-M1 | ||
| M30
(10 mm) |
Pre-wired (2 m) *1 | NO | E2EW-X10B130 2M | E2EW-X10C130 2M |
| NO+NC | E2EW-X10B330 2M | E2EW-X10C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-X10B130-M1TJ 0.3M | E2EW-X10C130-M1TJ 0.3M | |
| NO+NC | E2EW-X10B330-M1TJ 0.3M | E2EW-X10C330-M1TJ 0.3M | ||
| M12 Connector | NO | E2EW-X10B130-M1 | E2EW-X10C130-M1 | |
| NC | E2EW-X10B230-M1 | E2EW-X10C230-M1 | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EW-X3B112 5M)
*2. Operation model NC are also available with "E2EW-X[][]2[][]". (Example: E2EW-X3B212 2M)
The NC type is not available for M12 Connector model in M8 size sensors.
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. IO-Link is not supported for all types of BASIC Model.
2. IO-Link is not supported for all types of BASIC Model.
E2EW-Q Series (Spatter-resistant Double distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection method | Operation
mode *2 |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M12
(3 mm) |
Pre-wired (2 m) *1 | NO | E2EW-QX3B112 2M | E2EW-QX3C112 2M |
| NO+NC | E2EW-QX3B312 2M | E2EW-QX3C312 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX3B112-M1TJ 0.3M | E2EW-QX3C112-M1TJ 0.3M | |
| NO+NC | E2EW-QX3B312-M1TJ 0.3M | E2EW-QX3C312-M1TJ 0.3M | ||
| M18
(7 mm) |
Pre-wired (2 m) *1 | NO | E2EW-QX7B118 2M | E2EW-QX7C118 2M |
| NO+NC | E2EW-QX7B318 2M | E2EW-QX7C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX7B118-M1TJ 0.3M | E2EW-QX7C118-M1TJ 0.3M | |
| NO+NC | E2EW-QX7B318-M1TJ 0.3M | E2EW-QX7C318-M1TJ 0.3M | ||
| M30
(12 mm) |
Pre-wired (2 m) *1 | NO | E2EW-QX12B130 2M | E2EW-QX12C130 2M |
| NO+NC | E2EW-QX12B330 2M | E2EW-QX12C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX12B130-M1TJ 0.3M | E2EW-QX12C130-M1TJ 0.3M | |
| NO+NC | E2EW-QX12B330-M1TJ 0.3M | E2EW-QX12C330-M1TJ 0.3M | ||
E2EW-Q Series (Spatter-resistant Single distance model)
DC 3-wire
| Size
(Sensing distance) |
Connection method | Operation
mode *2 |
Model | |
|---|---|---|---|---|
| PNP | NPN | |||
| M8
(1.5 mm) |
M12 Connector | NO | E2EW-QX1R5B18-M1 | --- |
| M12
(2 mm) |
Pre-wired (2 m) *1 | NO | E2EW-QX2B112 2M | E2EW-QX2C112 2M |
| NO+NC | E2EW-QX2B312 2M | E2EW-QX2C312 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX2B112-M1TJ 0.3M | E2EW-QX2C112-M1TJ 0.3M | |
| NO+NC | E2EW-QX2B312-M1TJ 0.3M | E2EW-QX2C312-M1TJ 0.3M | ||
| M18
(5 mm) |
Pre-wired (2 m) *1 | NO | E2EW-QX5B118 2M | E2EW-QX5C118 2M |
| NO+NC | E2EW-QX5B318 2M | E2EW-QX5C318 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX5B118-M1TJ 0.3M | E2EW-QX5C118-M1TJ 0.3M | |
| NO+NC | E2EW-QX5B318-M1TJ 0.3M | E2EW-QX5C318-M1TJ 0.3M | ||
| M30
(10 mm) |
Pre-wired (2 m) *1 | NO | E2EW-QX10B130 2M | E2EW-QX10C130 2M |
| NO+NC | E2EW-QX10B330 2M | E2EW-QX10C330 2M | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
NO | E2EW-QX10B130-M1TJ 0.3M | E2EW-QX10C130-M1TJ 0.3M | |
| NO+NC | E2EW-QX10B330-M1TJ 0.3M | E2EW-QX10C330-M1TJ 0.3M | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EW-QX3B112 5M)
*2. Operation model NC are also available with "E2EW-QX[][]2[][]". (Example: E2EW-QX3B212 2M)
The NC type are not available for M8 size sensors.
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. IO-Link is not supported for all types of BASIC Model.
E2EW Series (Double distance model)
DC 2-wire
| Size
(Sensing distance) |
Connection method | Polarity | Model | |
|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | |||
| M8
(2 mm) |
Pre-wired (2 m) | Yes | E2EW-X2D18 2M *1 | --- |
| No | E2EW-X2D18-T 2M | --- | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X2D18-M1TGJ 0.3M | --- | |
| No | E2EW-X2D18-M1TGJ-T 0.3M | --- | ||
| M12
(3 mm) |
Pre-wired (2 m) *1 | Yes | E2EW-X3D112 2M | E2EW-X3D212 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X3D112-M1TGJ 0.3M | --- | |
| No | E2EW-X3D112-M1TGJ-T 0.3M | --- | ||
| M18
(7 mm) |
Pre-wired (2 m) *1 | Yes | E2EW-X7D118 2M | E2EW-X7D218 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X7D118-M1TGJ 0.3M | --- | |
| No | E2EW-X7D118-M1TGJ-T 0.3M | --- | ||
| M30
(12 mm) |
Pre-wired (2 m) *1 | Yes | E2EW-X12D130 2M | E2EW-X12D230 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X12D130-M1TGJ 0.3M | --- | |
| No | E2EW-X12D130-M1TGJ-T 0.3M | --- | ||
E2EW Series (Single distance model)
DC 2-wire
| Size
(Sensing distance) |
Connection method | Polarity | Model | |
|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | |||
| M8
(1.5 mm) |
Pre-wired (2 m) | Yes | E2EW-X1R5D18 2M *1 | E2EW-X1R5D28 2M |
| No | E2EW-X1R5D18-T 2M | --- | ||
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X1R5D18-M1TGJ 0.3M | --- | |
| No | E2EW-X1R5D18-M1TGJ-T 0.3M | --- | ||
| M12
(2 mm) |
Pre-wired (2 m) *1 | Yes | E2EW-X2D112 2M | E2EW-X2D212 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X2D112-M1TGJ 0.3M | --- | |
| No | E2EW-X2D112-M1TGJ-T 0.3M | --- | ||
| M18
(5 mm) |
Pre-wired (2 m) *1 | Yes | E2EW-X5D118 2M | E2EW-X5D218 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X5D118-M1TGJ 0.3M | --- | |
| No | E2EW-X5D118-M1TGJ-T 0.3M | --- | ||
| M30
(10 mm) |
Pre-wired (2 m) *1 | Yes | E2EW-X10D130 2M | E2EW-X10D230 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-X10D130-M1TGJ 0.3M | --- | |
| No | E2EW-X10D130-M1TGJ-T 0.3M | --- | ||
*1. Models with 5-m cable length are also available with "5M" suffix. (Example: E2EW-X3D112 5M)
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. IO-Link is not supported for BASIC Model.
E2EW-Q Series (Spatter-resistant Double distance model)
DC 2-wire
| Size
(Sensing distance) |
Connection method | Polarity | Model | |
|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | |||
| M8
(2 mm) |
Pre-wired (2 m) | Yes | E2EW-QX2D18 2M *1 | --- |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX2D18-M1TGJ 0.3M | --- | |
| M12
(3 mm) |
Pre-wired (2 m) | Yes | E2EW-QX3D112 2M *1 | E2EW-QX3D212 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX3D112-M1TGJ 0.3M | --- | |
| No | E2EW-QX3D112-M1TGJ-T 0.3M | --- | ||
| M18
(7 mm) |
Pre-wired (2 m) | Yes | E2EW-QX7D118 2M *1 | E2EW-QX7D218 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX7D118-M1TGJ 0.3M | --- | |
| No | E2EW-QX7D118-M1TGJ-T 0.3M | --- | ||
| M30
(12 mm) |
Pre-wired (2 m) | Yes | E2EW-QX12D130 2M *1 | E2EW-QX12D230 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX12D130-M1TGJ 0.3M | --- | |
| No | E2EW-QX12D130-M1TGJ-T 0.3M | --- | ||
E2EW-Q Series (Spatter-resistant Single distance model)
DC 2-wire
| Size
(Sensing distance) |
Connection method | Polarity | Model | |
|---|---|---|---|---|
| Operation mode: NO | Operation mode: NC | |||
| M8
(1.5 mm) |
Pre-wired (2 m) | Yes | E2EW-QX1R5D18 2M *1 | --- |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX1R5D18-M1TGJ 0.3M | --- | |
| No | E2EW-QX1R5D18-M1TGJ-T 0.3M | --- | ||
| M12
(2 mm) |
Pre-wired (2 m) | Yes | E2EW-QX2D112 2M *1 | E2EW-QX2D212 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX2D112-M1TGJ 0.3M | --- | |
| No | E2EW-QX2D112-M1TGJ-T 0.3M | --- | ||
| M18
(5 mm) |
Pre-wired (2 m) | Yes | E2EW-QX5D118 2M *1 | E2EW-QX5D218 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX5D118-M1TGJ 0.3M | --- | |
| No | E2EW-QX5D118-M1TGJ-T 0.3M | --- | ||
| M30
(10 mm) |
Pre-wired (2 m) | Yes | E2EW-QX10D130 2M *1 | E2EW-QX10D230 2M |
| M12 Pre-wired
Smartclick Connector (0.3 m) |
Yes | E2EW-QX10D130-M1TGJ 0.3M | --- | |
| No | E2EW-QX10D130-M1TGJ-T 0.3M | --- | ||
*1. Models with 5-m cable length are also available with “5M” suffix. (Example: E2EW-QX3D112 5M)
Note: 1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
2. IO-Link is not supported for BASIC Model.
last update: September 1, 2025
Top of page
Products
Menu
About Us
Menu
Solutions
Menu
Privacy
Menu
Services
Menu
Resources
Menu
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
