E3AS-HL / F / L Series
Distance-settable Photoelectric Sensor
E3AS Series changes the “way of using” reflective photoelectric sensors
Related Contents
Application Solutions
E3AS-HLlast update: October 1, 2024
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
E3AS-HL
Sensors
Pre-wired Models/Pre-wired Connector Models

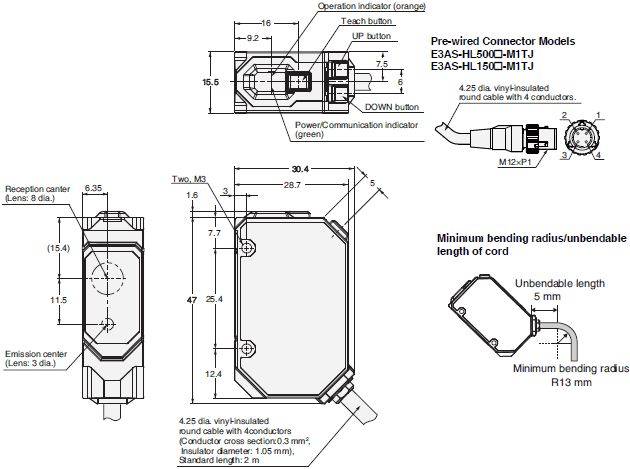

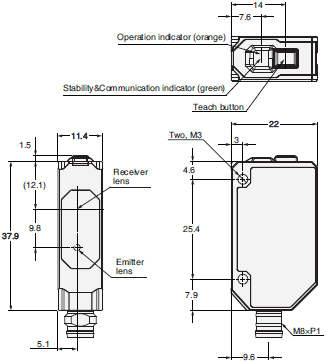

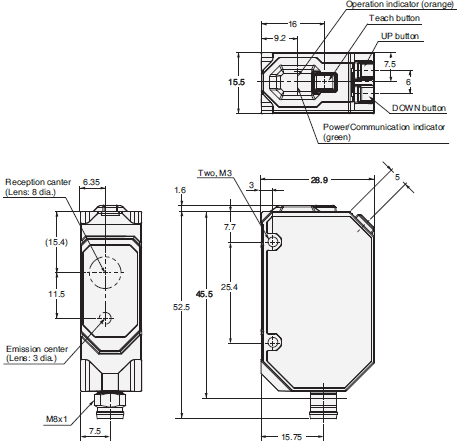

E3AS-HL500[] (-M1TJ)
E3AS-HL150[] (-M1TJ)
Connector Models
E3AS-HL500[] M3
E3AS-HL150[] M3
E3AS-F
Sensors
Pre-wired Models/Pre-wired Connector Models

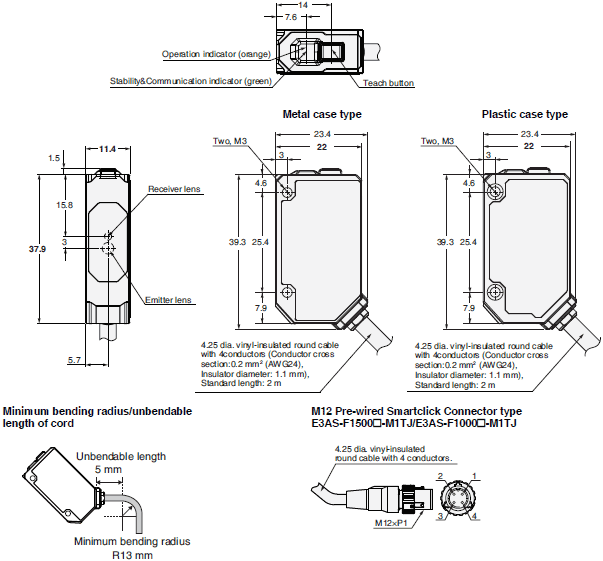

E3AS-F1500[] (-M1TJ)
E3AS-F1000[] (-M1TJ)
Connector Models

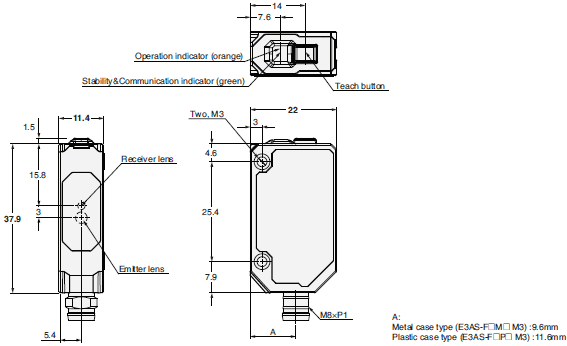

E3AS-F1500[] M3
E3AS-F1000[] M3
E3AS-L
Sensors
Pre-wired Models/Pre-wired Connector Models

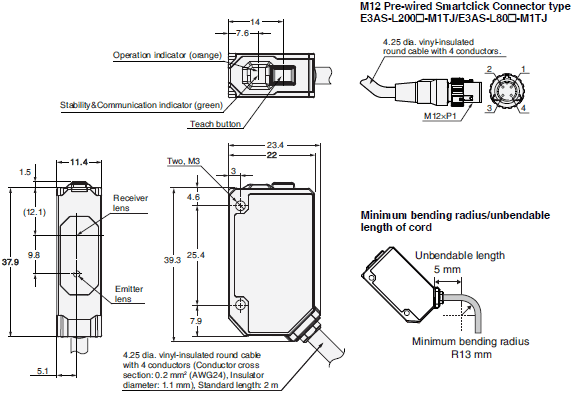

E3AS-L200[] (-M1TJ)
E3AS-L80[] (-M1TJ)
Connector Models
E3AS-L200[] M3
E3AS-L80[] M3
Accessories (Sold Separately)
Mounting Brackets
For E3AS-HL models

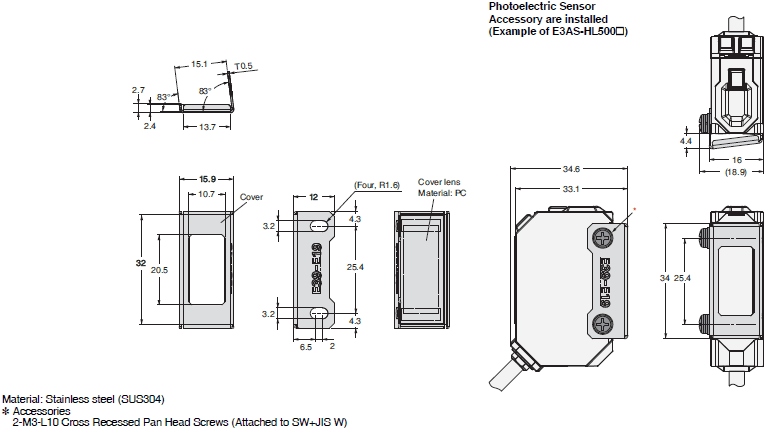

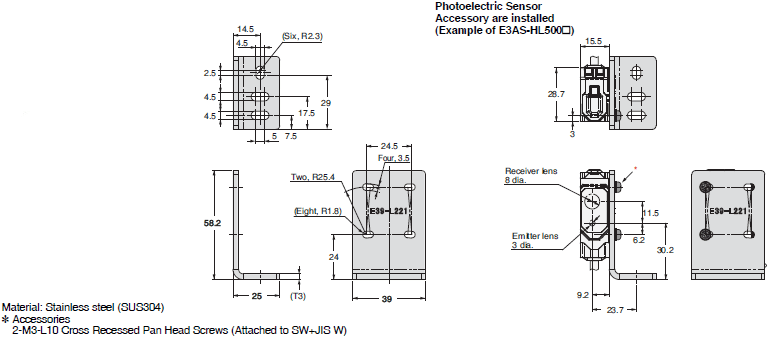

E39-L221

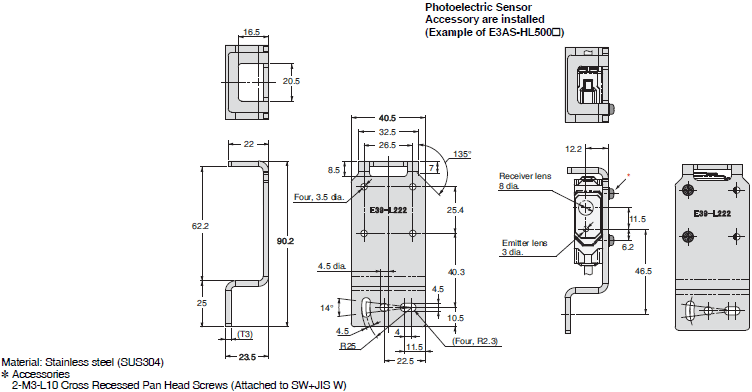

E39-L222

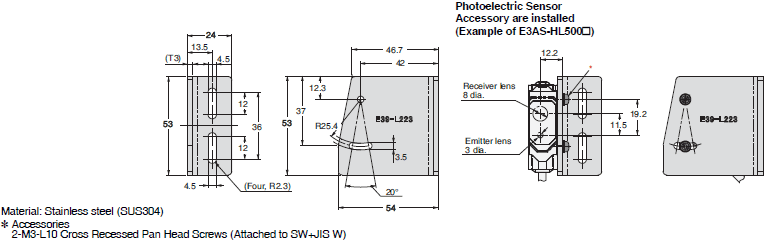

E39-L223

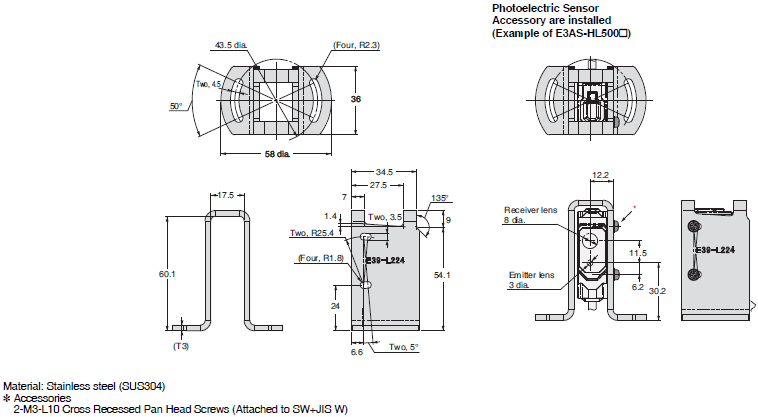

E39-L224

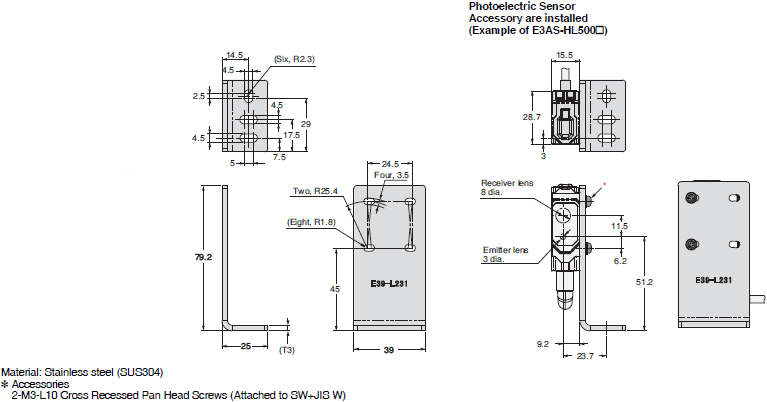

E39-L231

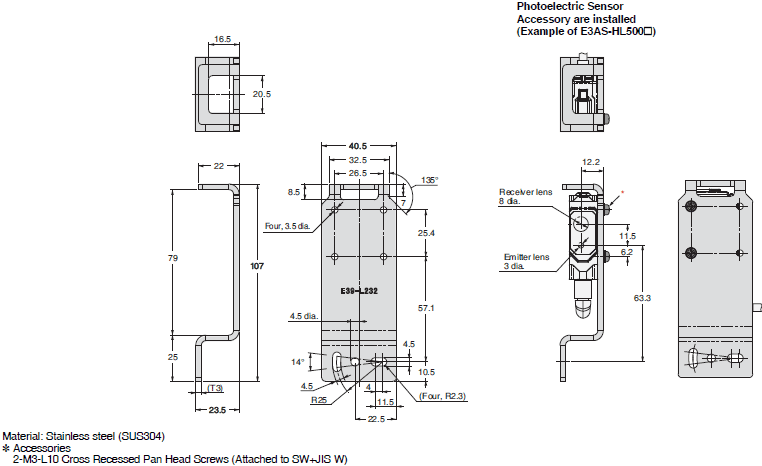

E39-L232

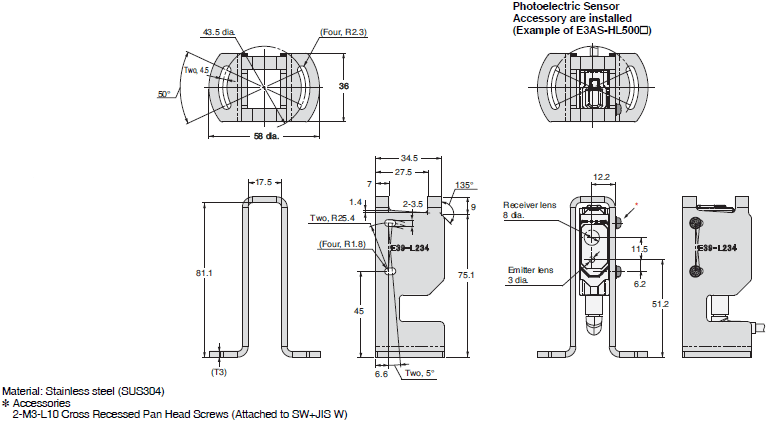

E39-L234
E39-E19
For E3AS-F/L models

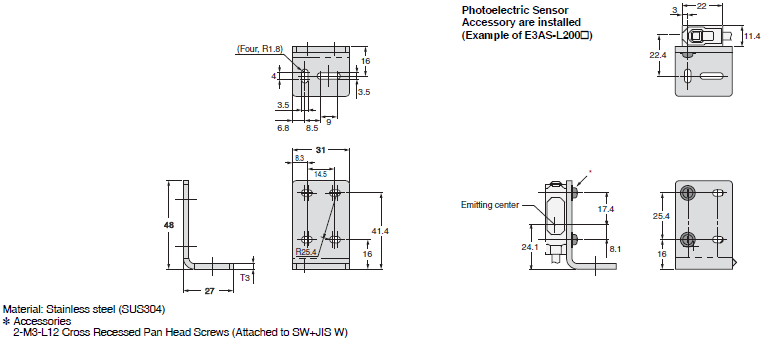

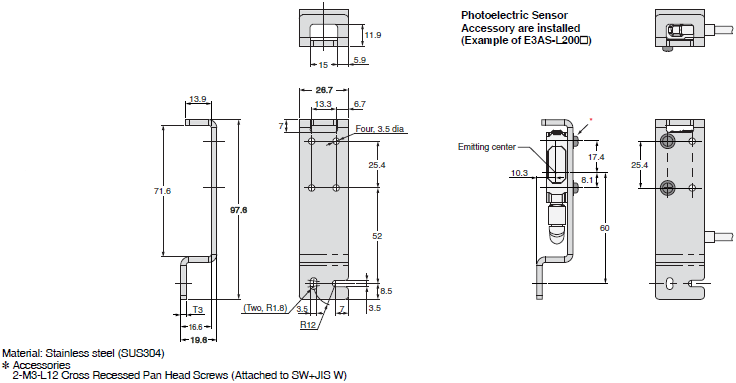

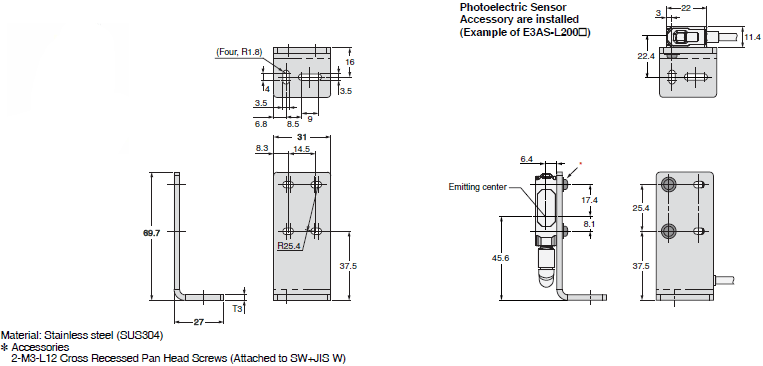

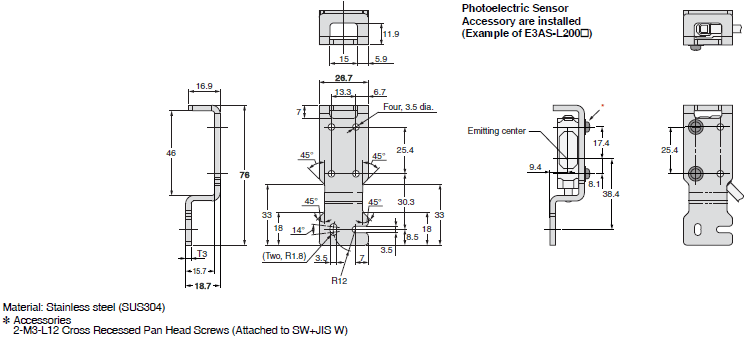

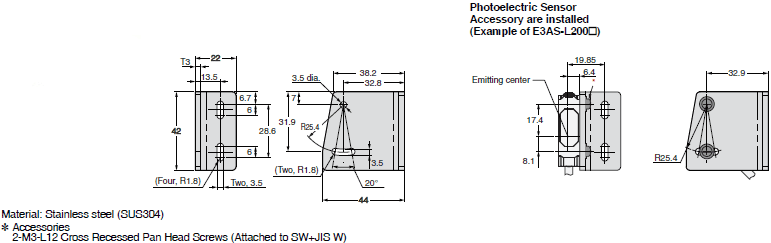

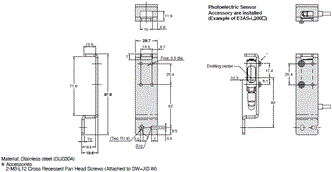

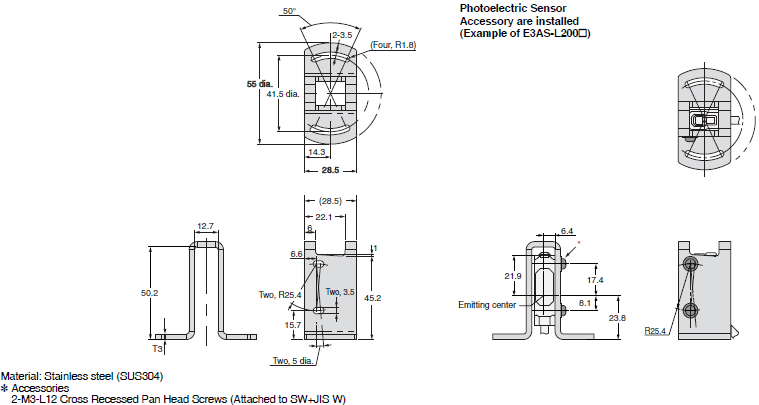

E39-L201
E39-L202
E39-L203
E39-L204
E39-L211
E39-L212
E39-L214
Common to E3AS-HL/F/L series

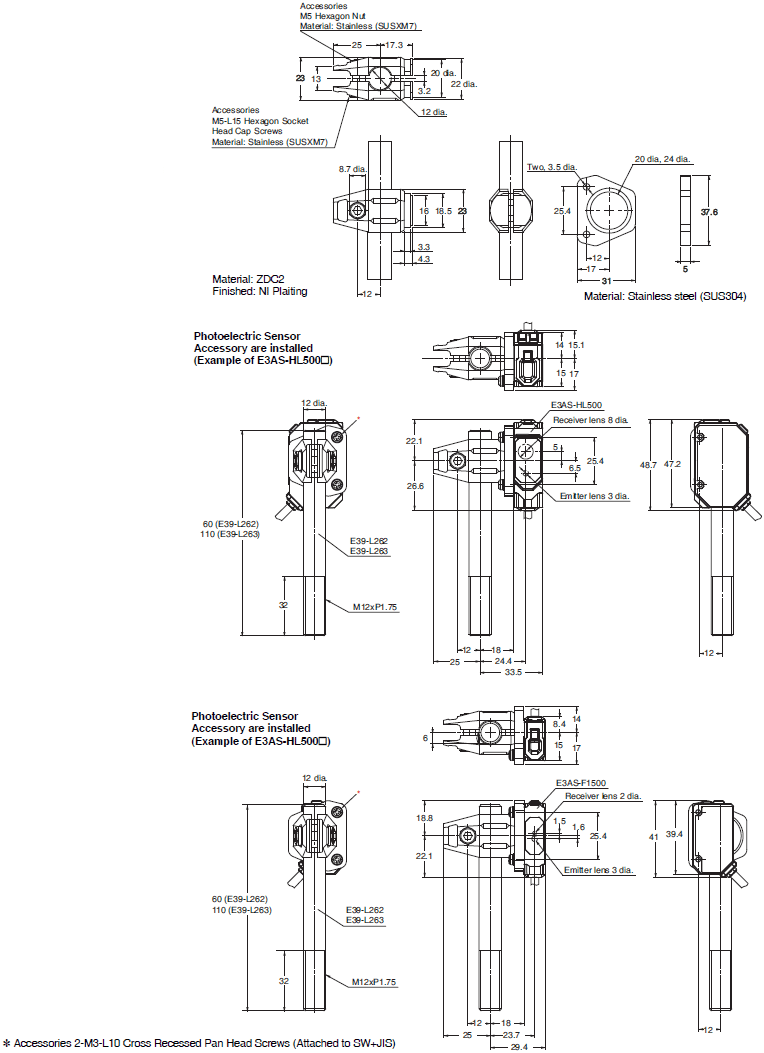

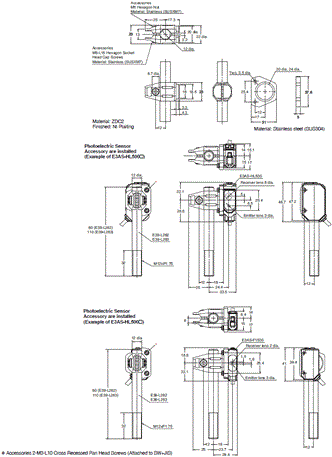

Flexible Mounting Bracket
E39-L261

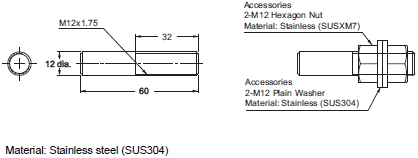

Post 50 mm
E39-L262

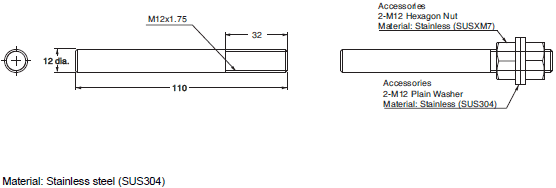

Post 100 mm
E39-L263

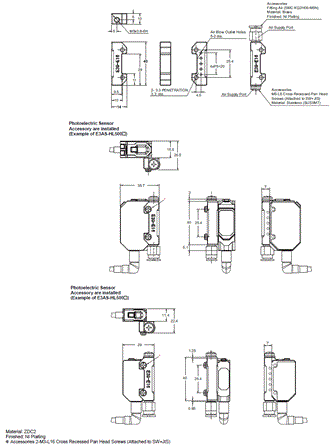

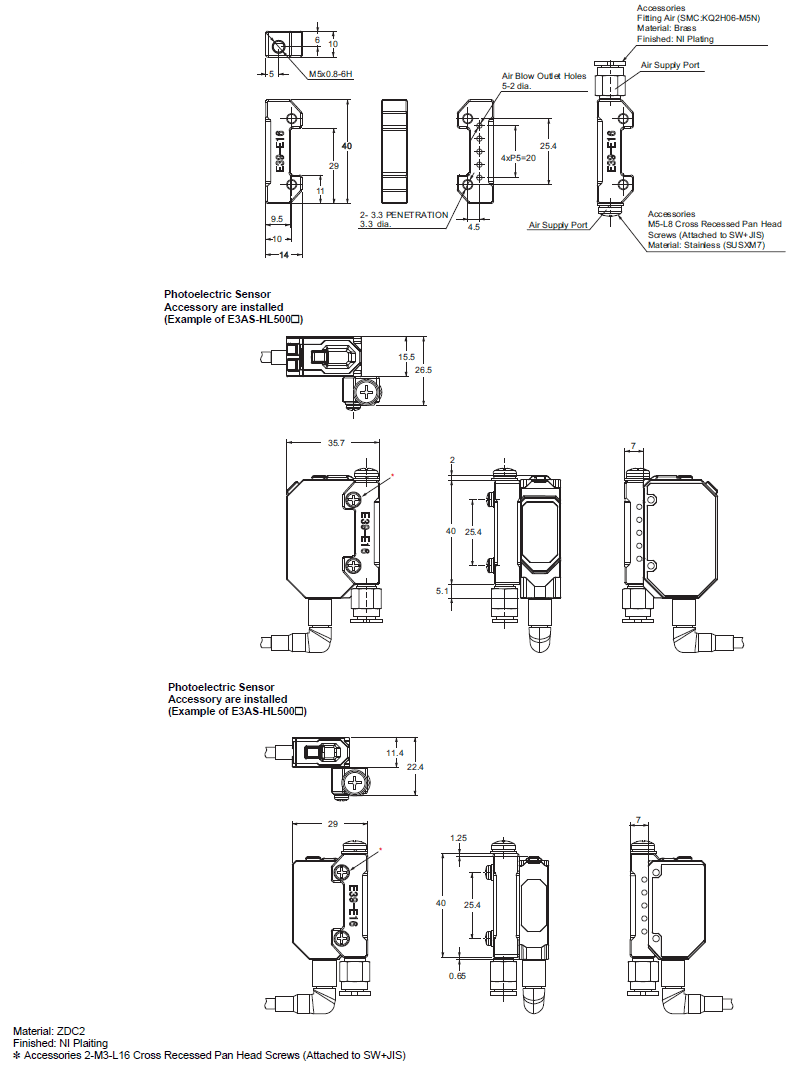

Air Blow Unit
E39-E16
last update: October 1, 2024
