H7CC-A
Digital Counter
New and improved design for easier use, setting and maintenance. The improved user interface is intuitive and offers better overall visibility. Replacement time notification function notifies the user of potential preventive maintenance
Related Contents
Application Solutions
last update: November 17, 2022

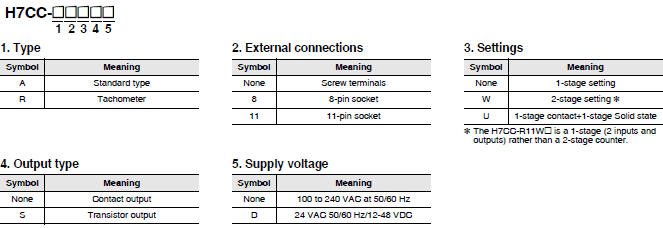

Model Number Legend (Not all possible combinations of functions are available.)
List of Models
| Classification | Configuration | External
connections |
Settings | Display
digits |
Outputs | Power
supply voltage |
Model |
|---|---|---|---|---|---|---|---|
| Preset counter | • 1-stage
preset counter • Total and preset counter |
8-pin socket | 1-stage | 6 digits | Contact output
(SPST) |
100 to
240 VAC |
H7CC-A8 |
| 24 VAC/
12 to 48 VDC |
H7CC-A8D | ||||||
| 11-pin socket | Contact output
(SPDT) |
100 to
240 VAC |
H7CC-A11 | ||||
| Transistor output
(SPST) |
H7CC-A11S | ||||||
| Contact output
(SPDT) |
24 VAC/
12 to 48 VDC |
H7CC-A11D | |||||
| Transistor output
(SPST) |
H7CC-A11SD | ||||||
| Screw
terminals |
Contact output
(SPDT) |
100 to
240 VAC |
H7CC-A | ||||
| Transistor output
(SPST) |
H7CC-AS | ||||||
| Contact output
(SPDT) |
24 VAC/
12 to 48 VDC |
H7CC-AD | |||||
| Transistor output
(SPST) |
H7CC-ASD | ||||||
| Preset counter/
Tachometer |
• 1-stage
preset counter • 2-stage preset counter • Total and preset counter • Batch counter • Dual counter • Twin counter • Tachometer |
2-stage | Contact output
(SPST+SPDT) |
100 to
240 VAC |
H7CC-AW | ||
| Transistor output
(DSPT) |
H7CC-AWS | ||||||
| Contact output
(SPST+SPDT) |
24 VAC/
12 to 48 VDC |
H7CC-AWD | |||||
| Transistor output
(DSPT) |
H7CC-AWSD | ||||||
| Contact output
(SPDT) + Transistor output (SPST) |
100 to
240 VAC |
H7CC-AU | |||||
| 24 VAC/
12 to 48 VDC |
H7CC-AUD |
Accessories (Order Separately)
Soft Cover
| Model | Remarks |
|---|---|
| Y92A-48F1 | --- |
Hard Cover
| Model | Remarks |
|---|---|
| Y92A-48 | --- |
Flush Mounting Adapter
| Model | Remarks |
|---|---|
| Y92F-30 | Included with models with screw terminals. |
| Y92F-45 | Use this Adapter to install the Counter/Tachometer in a cutout previously made
for a DIN 72 × 72 mm device (panel cutout: 68 × 68 mm). |
Waterproof Packing
| Model | Remarks |
|---|---|
| Y92S-P6 | Included with models with screw terminals. |
Connection Sockets
| Model | Classification | Connectable
Counter/ Tachometers |
Remarks |
|---|---|---|---|
| P2CF-08 | Front-connecting Socket | H7CC-[]8 | --- |
| P2CF-08-E | Front-connecting Socket
(Finger-safe Type) |
Round crimp terminals cannot be used on
Finger-safe Sockets. Use forked crimp terminals. |
|
| P3G-08 | Back-connecting Sockets | A Y92A-48G Terminal Cover can be used with
the Socket to create a finger-safe construction. |
|
| P2CF-11 | Front-connecting Socket | H7CC-[]11 | --- |
| P2CF-11-E | Front-connecting Socket
(Finger-safe Type) |
Round crimp terminals cannot be used on
Finger-safe Sockets. Use forked crimp terminals. |
|
| P3GA-11 | Back-connecting Sockets | A Y92A-48G Terminal Cover can be used with
the Socket to create a finger-safe construction. |
Terminal Covers for P3G-08/P3GA-11 Back-connecting Socket
| Model | Remarks |
|---|---|
| Y92A-48G | --- |
