G3RV-ST
Slim I/O Solid State Relay
Slim I/O SSR realizes space saving thanks to high-density mounting and ultra-slim body
Related Contents
Application Solutions
last update: November 18, 2024
Model Number Structure

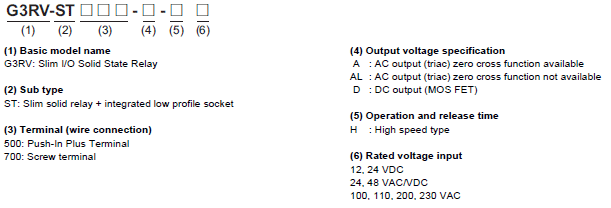

Model Number Legend
Ordering Information
| Terminal
(wire connection) |
Applicable
output load |
Zero cross
function |
Rated input
voltage (V) |
Model | |
|---|---|---|---|---|---|
| Push-In Plus Terminal | DC load | — | DC | 12 | G3RV-ST500-D 12 VDC |
| 24 | G3RV-ST500-D 24 VDC | ||||
| AC/DC | 24 | G3RV-ST500-D 24 VAC/VDC | |||
| 48 | G3RV-ST500-D 48 VAC/VDC | ||||
| AC | 100 | G3RV-ST500-D 100 VAC | |||
| 110 | G3RV-ST500-D 110 VAC | ||||
| 200 | G3RV-ST500-D 200 VAC | ||||
| 230 | G3RV-ST500-D 230 VAC | ||||
| DC load
(high-speed opening and closing) |
— | DC | 24 | G3RV-ST500-D-H 24 VDC | |
| AC/DC | 24 | G3RV-ST500-D-H 24 VAC/VDC | |||
| AC load | Yes | DC | 12 | G3RV-ST500-A 12 VDC | |
| 24 | G3RV-ST500-A 24 VDC | ||||
| AC/DC | 24 | G3RV-ST500-A 24 VAC/VDC | |||
| 48 | G3RV-ST500-A 48 VAC/VDC | ||||
| AC | 100 | G3RV-ST500-A 100 VAC | |||
| 110 | G3RV-ST500-A 110 VAC | ||||
| 200 | G3RV-ST500-A 200 VAC | ||||
| 230 | G3RV-ST500-A 230 VAC | ||||
| No | DC | 12 | G3RV-ST500-AL 12 VDC | ||
| 24 | G3RV-ST500-AL 24 VDC | ||||
| AC/DC | 24 | G3RV-ST500-AL 24 VAC/VDC | |||
| 48 | G3RV-ST500-AL 48 VAC/VDC | ||||
| AC | 100 | G3RV-ST500-AL 100 VAC | |||
| 110 | G3RV-ST500-AL 110 VAC | ||||
| 200 | G3RV-ST500-AL 200 VAC | ||||
| 230 | G3RV-ST500-AL 230 VAC | ||||
| Screw terminal | DC load | — | DC | 12 | G3RV-ST700-D 12 VDC |
| 24 | G3RV-ST700-D 24 VDC | ||||
| AC/DC | 24 | G3RV-ST700-D 24 VAC/VDC | |||
| 48 | G3RV-ST700-D 48 VAC/VDC | ||||
| AC | 100 | G3RV-ST700-D 100 VAC | |||
| 110 | G3RV-ST700-D 110 VAC | ||||
| 200 | G3RV-ST700-D 200 VAC | ||||
| 230 | G3RV-ST700-D 230 VAC | ||||
| DC load
(high-speed opening and closing) |
— | DC | 24 | G3RV-ST700-D-H 24 VDC | |
| AC/DC | 24 | G3RV-ST700-D-H 24 VAC/VDC | |||
| AC load | Yes | DC | 12 | G3RV-ST700-A 12 VDC | |
| 24 | G3RV-ST700-A 24 VDC | ||||
| AC/DC | 24 | G3RV-ST700-A 24 VAC/VDC | |||
| 48 | G3RV-ST700-A 48 VAC/VDC | ||||
| AC | 100 | G3RV-ST700-A 100 VAC | |||
| 110 | G3RV-ST700-A 110 VAC | ||||
| 200 | G3RV-ST700-A 200 VAC | ||||
| 230 | G3RV-ST700-A 230 VAC | ||||
| No | DC | 12 | G3RV-ST700-AL 12 VDC | ||
| 24 | G3RV-ST700-AL 24 VDC | ||||
| AC/DC | 24 | G3RV-ST700-AL 24 VAC/VDC | |||
| 48 | G3RV-ST700-AL 48 VAC/VDC | ||||
| AC | 100 | G3RV-ST700-AL 100 VAC | |||
| 110 | G3RV-ST700-AL 110 VAC | ||||
| 200 | G3RV-ST700-AL 200 VAC | ||||
| 230 | G3RV-ST700-AL 230 VAC | ||||
Note: Sockets are not sold individually.
Solid state relay for maintenance

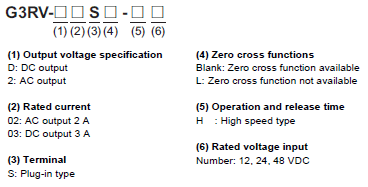

Model Number Legend
List of Models
| Insulation
method |
Operation
Display |
Output
(SSR) |
Zero
cross Function |
Rated
output Load * |
Rated
input voltage (socket) |
Model | Applicable model |
|---|---|---|---|---|---|---|---|
| Photo-triac | Yes
(green) |
AC | Yes | 2 A
(at 100 to 240 VAC) |
12 VDC | G3RV-202S DC12 | G3RV-ST700/500-A 12 VDC |
| 24 VDC | G3RV-202S DC24 | G3RV-ST700/500-A 24 VDC | |||||
| 24
VAC/VDC |
G3RV-ST700/500-A 24 VAC/VDC | ||||||
| 48
VAC/VDC |
G3RV-202S DC48 | G3RV-ST700/500-A 48 VAC/VDC | |||||
| 100 VAC | G3RV-ST700/500-A 100 VAC | ||||||
| 110 VAC | G3RV-ST700/500-A 110 VAC | ||||||
| 200 VAC | G3RV-ST700/500-A 200 VAC | ||||||
| 230 VAC | G3RV-ST700/500-A 230 VAC | ||||||
| No | 12 VDC | G3RV-202SL DC12 | G3RV-ST700/500-AL 12 VDC | ||||
| 24 VDC | G3RV-202SL DC24 | G3RV-ST700/500-AL 24 VDC | |||||
| 24
VAC/VDC |
G3RV-ST700/500-AL 24 VAC/VDC | ||||||
| 48
VAC/VDC |
G3RV-202SL DC48 | G3RV-ST700/500-AL 48 VAC/VDC | |||||
| 100 VAC | G3RV-ST700/500-AL 100 VAC | ||||||
| 110 VAC | G3RV-ST700/500-AL 110 VAC | ||||||
| 200 VAC | G3RV-ST700/500-AL 200 VAC | ||||||
| 230 VAC | G3RV-ST700/500-AL 230 VAC | ||||||
| Photo-
voltage coupler |
DC | - | 3 A
(at 5 to 24 VDC) |
12 VDC | G3RV-D03SL DC12 | G3RV-ST700/500-D 12 VDC | |
| 24 VDC | G3RV-D03SL DC24 | G3RV-ST700/500-D 24 VDC | |||||
| 24
VAC/VDC |
G3RV-ST700/500-D 24 VAC/VDC | ||||||
| 48
VAC/VDC |
G3RV-D03SL DC48 | G3RV-ST700/500-D 48 VAC/VDC | |||||
| 100 VAC | G3RV-ST700/500-D 100 VAC | ||||||
| 110 VAC | G3RV-ST700/500-D 110 VAC | ||||||
| 200 VAC | G3RV-ST700/500-D 200 VAC | ||||||
| 230 VAC | G3RV-ST700/500-D 230 VAC | ||||||
| 24 VDC | G3RV-D03SL-H DC24 | G3RV-ST700/500-D-H 24 VDC | |||||
| G3RV-ST700/500-D-H 24 VAC/VDC |
* Different depending on the ambient temperature.
For more details, refer to Load current vs. ambient rated temperature on Data Sheet.
Accessories (order separately)
Short Bars
| Appearance | Pitch | No. of
poles |
Colors | Model *1 | Minimum order
(Quantity) |
Maximum energizing
current |
|---|---|---|---|---|---|---|
 |
6.2 mm | 20 | Red (R),
Blue (S), Yellow (Y) |
PYDN-6.2ST-200[] | 10 *2 | 32 A |
Note: Use for wiring to the adjacent socket.
*1. Replace the box ([]) in the model number with the code for the covering color. [] color selection: R = red, S = blue, Y = yellow
*2. Short bars come in bags of 10.
Label
| Appearance | Model | Minimum order (Sheet)
(Pieces per sheet) |
|---|---|---|
 |
XW5Z-P2.5LB1 | 5
(1 sheet/72 pieces) |
Separate Plate
| Appearance | Model |
|---|---|
 |
XW5Z-EP12 |
Isolation plate
| Appearance | Model |
|---|---|
 |
P2RV-P3.1ST |
PLC interface unit
| Appearance | I/O
classification |
Connection
method |
Common
process |
Applicable
Models *1 |
Model |
|---|---|---|---|---|---|
 |
For input | Push-In | PNP | G2RV-ST500-AP *2 | P2RVC-8ST-I-5-1 |
| NPN | P2RVC-8ST-I-5 | ||||
| Screw | PNP | G2RV-ST700-AP *2 | P2RVC-8ST-I-7-1 | ||
| For output | Push-In | PNP | G3RV-ST500(-D)/(-D-H)/
(-A)/(-AL) or G3RV-ST500 series *3 |
P2RVC-8ST-O-5-1 | |
| NPN | P2RVC-8ST-O-5 | ||||
| Screw | PNP | G3RV-ST700(-D)/(-D-H)/
(-A)/(-AL) or G3RV-ST500 series *3 |
P2RVC-8ST-O-7-1 |
*1. Please make sure applicable models, P2RVC can not be used other combination than the above table.
*2. The maximum contact voltage is 30 VAC/DC.
*3. Operating coils are only available in 12 and 24 VDC and 24 VAC/DC.
Parts for DIN Track Mounting
| Appearance | Type | Model | Minimum order
(Quantity) |
|
|---|---|---|---|---|
 |
DIN Tracks | 1 m | PFP-100N | 1 |
| 0.5 m | PFP-50N | |||
 |
End Plate * | PFP-M | 10 | |
 |
Spacer | PFP-S | ||
* When mounting DIN Track, please use End Plate (PFP-M).
Refer to your OMRON website for details on PFP-[].
Applicable Cables
| Name | Appearance | Cable
length L (mm) |
Connecting Cables | Applicable Connectors | |
|---|---|---|---|---|---|
| Cables with
Loose Wires P2RV-A[]C |
8 I/O
points |
 |
1,000 | P2RV-A100C | Various devices |
| 2,000 | P2RV-A200C | ||||
| 3,000 | P2RV-A300C | ||||
| 5,000 | P2RV-A500C | ||||
| OMRON PLC
Connecting Cables with Connectors (1:4) P2RV-4-[]C |
32 output
points |
 |
1,000 | P2RV-4-100C | PLC I/O Units with MIL
connectors (1:4) CJ1W-OD232/OD262, etc. |
| 2,000 | P2RV-4-200C | ||||
| 3,000 | P2RV-4-300C | ||||
| 5,000 | P2RV-4-500C | ||||
| OMRON PLC
Connecting Cables with Connectors (1:4) P2RV-4-[]IMC |
32 input
points |
 |
1,000 | P2RV-4-100IMC | PLC I/O Units with MIL
connectors (1:4) CJ1W-ID232/ID262, etc. *1 |
| 2,000 | P2RV-4-200IMC | ||||
| 3,000 | P2RV-4-300IMC | ||||
| 5,000 | P2RV-4-500IMC | ||||
| OMRON PLC
Connecting Cables with Connectors (1:4) P2RV-4-[]IFC |
32 input
points |
 |
1,000 | P2RV-4-100IFC | PLC I/O Units with Fujitsu/
Otax connectors (1:4) CJ1W-ID231/ID261, etc. *2 |
| 2,000 | P2RV-4-200IFC | ||||
| 3,000 | P2RV-4-300IFC | ||||
| 5,000 | P2RV-4-500IFC | ||||
| OMRON PLC
Connecting Cables with Connectors (1:1) P2RV-A[]C-OMR NX |
8 output
points |
 |
500 | P2RV-A050C-OMR NX | PLC I/O Units with
screw-less clamp terminal block (1:1) For inputs: NX-ID4442 For outputs: NX-OD4256 |
| 1,000 | P2RV-A100C-OMR NX | ||||
| 8 input
points |
500 | P2RV-A050IC-OMR NX | |||
| 1,000 | P2RV-A100IC-OMR NX | ||||
| Schneider Electric
PLC Connecting Cables P2RV-[]C-SCH-[] |
32 input
points |
 |
500 | P2RV-050C-SCH-A | Schneider Electric PLCs with
32-point connectors (1:4) For inputs: 140 DDI 353 00 For outputs: 140 DDO 353 00 |
| 1,000 | P2RV-100C-SCH-A | ||||
| 2,000 | P2RV-200C-SCH-A | ||||
| 3,000 | P2RV-300C-SCH-A | ||||
| 5,000 | P2RV-500C-SCH-A | ||||
| 32 output
points |
500 | P2RV-050C-SCH-B | |||
| 1,000 | P2RV-100C-SCH-B | ||||
| 2,000 | P2RV-200C-SCH-B | ||||
| 3,000 | P2RV-300C-SCH-B | ||||
| 5,000 | P2RV-500C-SCH-B | ||||
| 16 input
points |
 |
500 | P2RV-050C-SCH-C | Schneider Electric PLCs with
16-point connectors (1:2) For inputs: BMX DDI 1602 For outputs: BMX DDO 1602 |
|
| 1,000 | P2RV-100C-SCH-C | ||||
| 2,000 | P2RV-200C-SCH-C | ||||
| 3,000 | P2RV-300C-SCH-C | ||||
| 5,000 | P2RV-500C-SCH-C | ||||
| 16 output
points |
500 | P2RV-050C-SCH-D | |||
| 1,000 | P2RV-100C-SCH-D | ||||
| 2,000 | P2RV-200C-SCH-D | ||||
| 3,000 | P2RV-300C-SCH-D | ||||
| 5,000 | P2RV-500C-SCH-D | ||||
| Siemens PLC
Connecting Cables P2RV-[]C-SIM-[] |
32 input
points |
 |
500 | P2RV-050C-SIM-A | Siemens PLCs with
32-point connectors (1:4) For inputs: 6ES7 321-1BL00-0AA0 For outputs: 6ES7 322-1BL00-0AA0 |
| 1,000 | P2RV-100C-SIM-A | ||||
| 2,000 | P2RV-200C-SIM-A | ||||
| 3,000 | P2RV-300C-SIM-A | ||||
| 5,000 | P2RV-500C-SIM-A | ||||
| 32 output
points |
500 | P2RV-050C-SIM-B | |||
| 1,000 | P2RV-100C-SIM-B | ||||
| 2,000 | P2RV-200C-SIM-B | ||||
| 3,000 | P2RV-300C-SIM-B | ||||
| 5,000 | P2RV-500C-SIM-B | ||||
| 16 input
points |
 |
500 | P2RV-050C-SIM-C | Siemens PLCs with
16-point connectors (1:2) For inputs: 6ES7 321-1BH02-0AA0 |
|
| 1,000 | P2RV-100C-SIM-C | ||||
| 2,000 | P2RV-200C-SIM-C | ||||
| 3,000 | P2RV-300C-SIM-C | ||||
| 5,000 | P2RV-500C-SIM-C | ||||
| 32 input
points |
 |
500 | P2RV-050C-SIM-D | Siemens PLCs with
32-point connectors (1:4) For inputs: 6ES7 421-1BL-0AA0 For outputs: 6ES7 422-1BL-0AA0 |
|
| 1,000 | P2RV-100C-SIM-D | ||||
| 2,000 | P2RV-200C-SIM-D | ||||
| 3,000 | P2RV-300C-SIM-D | ||||
| 5,000 | P2RV-500C-SIM-D | ||||
| 32 output
points |
500 | P2RV-050C-SIM-E | |||
| 1,000 | P2RV-100C-SIM-E | ||||
| 2,000 | P2RV-200C-SIM-E | ||||
| 3,000 | P2RV-300C-SIM-E | ||||
| 5,000 | P2RV-500C-SIM-E | ||||
*1. Use the P2RVC-8ST-I-[]-1(PNP) as the PLC interface unit when connecting to the CJ1W-ID232/ID262 (or a unit with an equivalent terminal arrangement).
*2. Use the P2RVC-8ST-I-[]-1(PNP) as the PLC interface unit when connecting to the CJ1W-ID231/ID261 (or a unit with an equivalent terminal arrangement).
