LD Series

Autonomous Mobile Robots

LD Series

A mobile robot series that automates material transport in factories and warehouses. Autonomously recognizes its environment and safely avoids people and obstacles. Available in three models: 60, 90, and 250 kg.

last update: October 1, 2025

(Unit: mm)

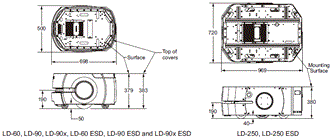

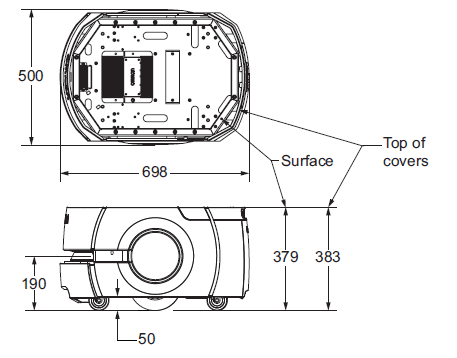

LD-60, LD-90, LD-90x, LD-60 ESD, LD-90 ESD and LD-90x ESD

LD Series Dimensions 1

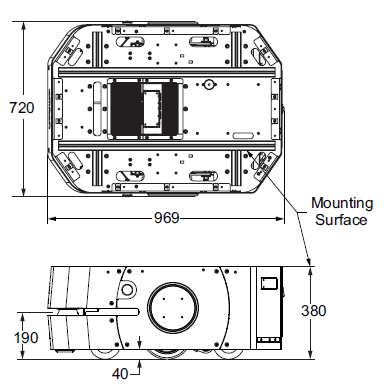

LD-250, LD-250 ESD

LD Series Dimensions 2

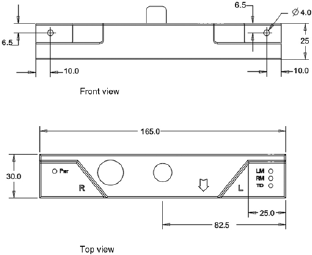

High Accuracy Positioning System (HAPS)

LD Series Dimensions 3

Acuity Localization

LD Series Dimensions 4

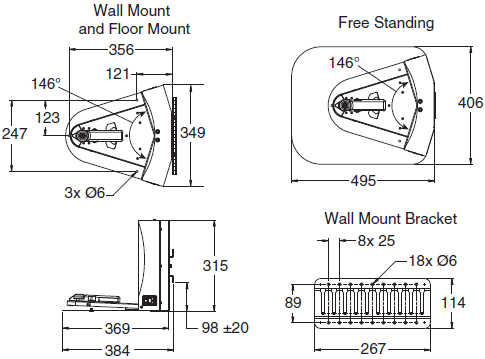

Docking Station

LD Series Dimensions 5

Joystick (Pendant)

LD Series Dimensions 6

last update: October 1, 2025
