Power Relay

Stable Contact Reliability and Long Life

last update: November 12, 2012

(Unit: mm)

Standard Relays

Open Relays

Solder Terminals

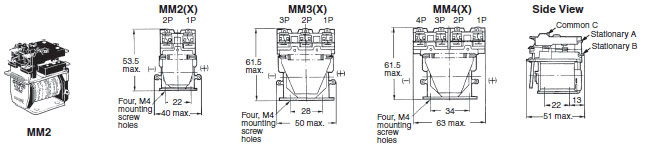

MM2(X), MM4(X), MM3(X)

Note: Connect the common (C) of MM[]X to positive (+).

Screw Terminals

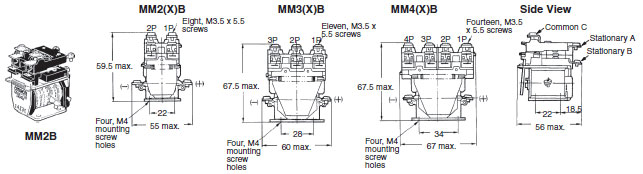

MM2(X)B, MM3(X)B,MM4(X)B

Note: Connect the common (C) of MM[]XB to positive (+).

Mounting Holes (Bottom View)

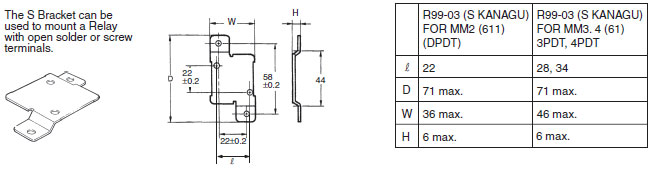

Mounting Bracket (S Bracket)
R99-03 (S KANAGU) FOR MM[]

Cased Relays

Plug-in Terminals

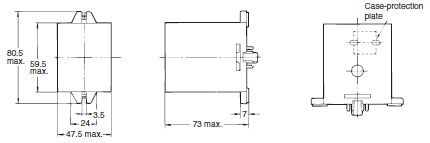

MM2P(N, -D)
MM2XP(N, -D)

Note: As shown in the diagram, there are three 10-dia. holes in the side of the case for the MM2XP(N, -D).
When a case-protection plate is attached, the width of the Relay will be 48 mm max.

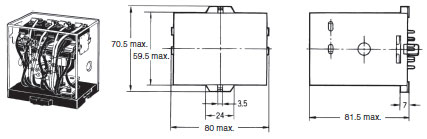

MM3P(N)

MM3PXP(N)

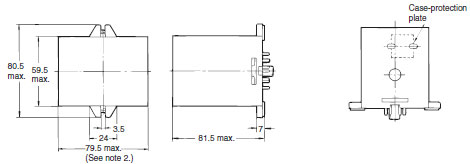

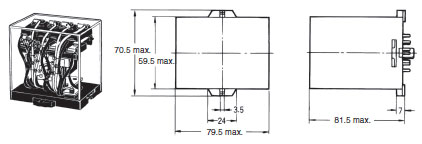

MM4P(N, -D)
MM4XP(N, -D)

Note 1: As shown in the diagram, there are three 10-dia. holes in the side of the case for MM[]XP(N, -D).
2: When a case-protection plate is attached, the width of the Relay will be 80 mm max.
