G3F / G3FD

Solid State Relays G3[]-VD

G3F / G3FD

Solid State Relays Featuring the Same Profile as MY Power Relays

last update: January 5, 2022

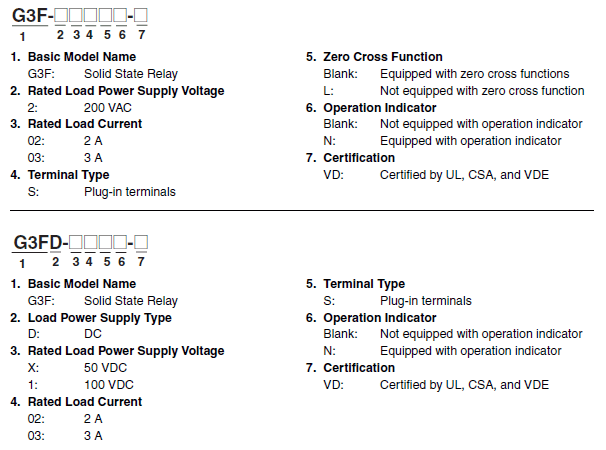

Model Number Structure

Model Number Legend

Ordering Information

List of Models

Isolation	Zero cross function	Indicator	Rated output load	Rated input voltage	Scheduled to be no longer available to order after March 2023	Recommended Replacement/certified for safety standard products
Photocoupler	Yes	Yes	3 A at 100 to 240 VAC *1	5 to 24 VDC	G3F-203SN DC5-24	G3F-203SN-VD DC5-24
			2 A at 100 to 240 VAC *1	100/110 VAC	G3F-202SN AC100/110	G3F-202SN-VD AC100/110
			2 A at 100 to 240 VAC *1	200/220 VAC	G3F-202SN AC200/220	G3F-202SN-VD AC200/220
Phototriac coupler	No		3 A at 100 to 240 VAC *1	5 VDC	G3F-203SLN DC5	G3F-203SLN-VD DC5
				12 VDC	G3F-203SLN DC12	G3F-203SLN-VD DC12
				24 VDC	G3F-203SLN DC24	G3F-203SLN-VD DC24
Photocoupler	-		3 A at 4 to 48 VDC *2	5 to 24 VDC	G3FD-X03SN DC5-24	G3FD-X03SN-VD DC5-24
			2 A at 5 to 110 VDC *3	100/110 VAC	G3FD-102SN DC5-24	G3FD-102SN-VD DC5-24
				200/220 VAC	G3FD-102SN AC100/110	G3FD-102SN-VD AC100/110
				5 to 24 VDC	G3FD-102SN AC200/220	G3FD-102SN-VD AC200/220
Photocoupler	Yes	No	3 A at 100 to 240 VAC *1	4 to 24 VDC	G3F-203S DC3-28	G3F-203S-VD DC4-24
Phototriac coupler	No			5 VDC	G3F-203SL DC5	G3F-203SL-VD DC5
				12 VDC	G3F-203SL DC12	G3F-203SL-VD DC12
				24 VDC	G3F-203SL DC24	G3F-203SL-VD DC24
Photocoupler	-		3 A at 4 to 48 VDC *2	4 to 24 VDC	G3FD-X03S DC3-28	G3FD-X03S-VD DC4-24
Photocoupler	-		2 A at 5 to 110 VDC *3	4 to 24 VDC	G3FD-102S DC3-28	G3FD-102S-VD DC4-24

*1. Product is labelled "240 VAC".
*2. Product is labelled "48 VDC".
*3. Product is labelled “110 VDC”.
*4. When ordering, specify the rated input voltage.

Accessories (Order Separately)

Connection Sockets

Classification	Terminal type	Model
Front-mounting	Screw terminals (Terminal cover structure) *	PYFZ-08
	Screw terminals (finger protection structure)	PYFZ-08-E
	Screw terminals (finger protection structure)	PYF08A-N
	Push-In Plus terminal blocks (Socket combination)	PYF-08-PU
Back-mounting	Relays with PCB Terminals	PY08-02

* Terminal cover type is PYCZ-C08. (Order Separately) For details, refer to the "Terminal Covers".
Refer to Common Socket and DIN Track Products for details on Connection Sockets and DIN Track products (sold separately) of your OMRON website.
Refer to PYF[][]-PU/P2RF-[][]-PU for details on A Push-In Plus Terminal Block Socket of your OMRON website.

Hold-down Clips

Applicable Socket			Hold-down Clips
Classification	Terminal type	Model	Model
For front-mounting	Screw terminals	PYFZ-08	PYC-A1 *
	Screw terminals (finger protection structure)	PYFZ-08-E
	Screw terminals (finger protection structure)	PYF08A-N
For back-mounting	Relays with PCB Terminals	PY08-02	PYC-P

* PYC-A1 is provided with two clips.

Terminal Covers

Applicable Socket	Terminal Covers
Model	Appearance	Model
PYFZ-08		PYCZ-C08 (2 pcs/set)

Note: Use these covers in a combination with PYFZ-08.

DIN Track Mounting Parts

Classification/division	Type		Model
For front-mounting	DIN Tracks	Shallow type, total length: 1 m	PFP-100N
		Shallow type, total length: 0.5 m	PFP-50N
		Deep type, total length: 1 m	PFP-100N2
	End Plate		PFP-M
	Spacer		PFP-S
