Enabling swift failure recovery for high impact equipment

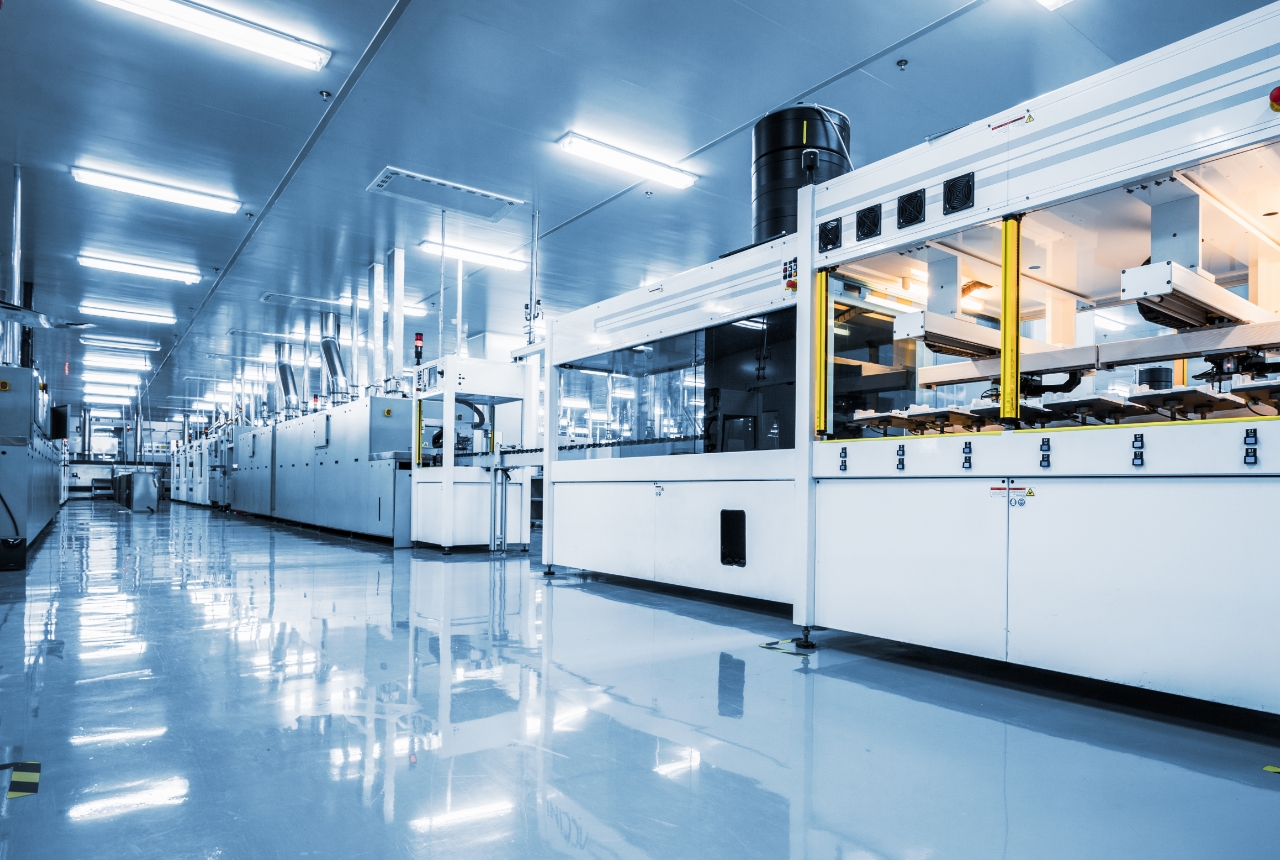

At sites that produce parts in large volumes, such as electronic part inspection lines, early anomaly detection is crucial,for the failure of a single component or piece of equipment can affect the entire production line.As equipment becomes increasingly advanced, however, space within the panel is becoming less and less available.

Enhancing equipment functionality while maintaining equipment size

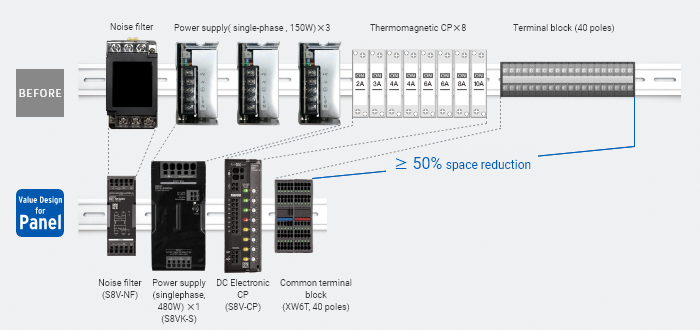

Omron's Value Design for Panel products consume dramatically less space compared to their previous counterparts.In the case of DC power supply circuit, for example, replacing thermomagnetic circuit protectors (CPs) with DC electronic CPs,as shown in the figure below,reduces width by approximately 50%,enhancing facility functionality while maintaining its size.

Swiftly identify and eliminate failures reliably

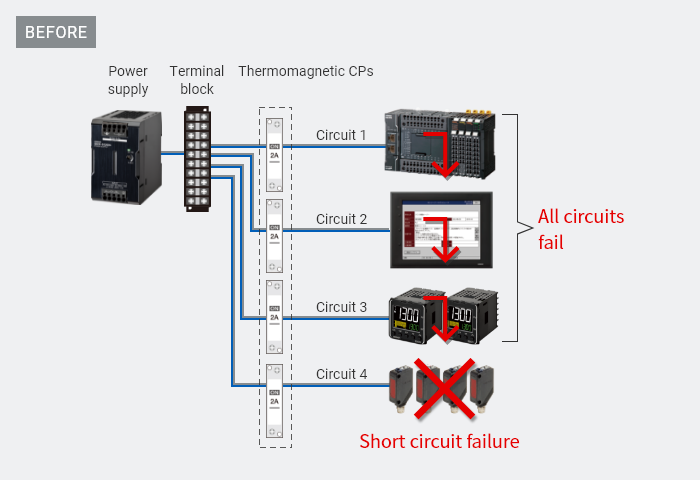

Power supply protection features kick in before thermomagnetic CPs can cut off failed circuit;output voltage drops,causing all circuits to fail.

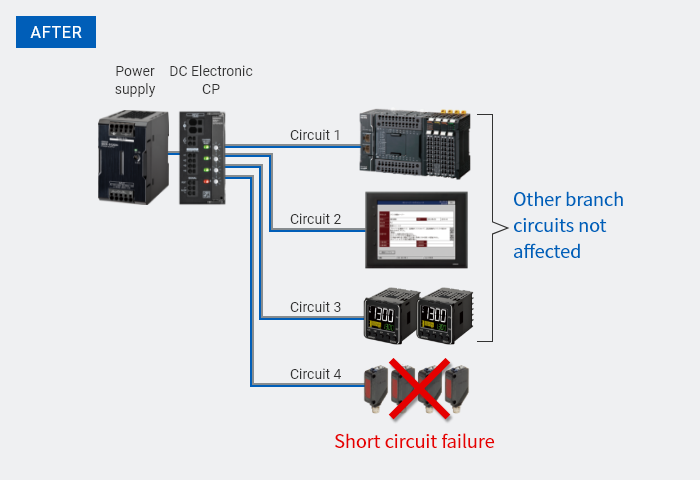

Electronic CP immediately identifies failed circuit and selectively cuts it off
