A7D / A7DP

Thumbwheel Switch

A7D / A7DP

Ultra-small, Low-cost, Push-operated Switches

(Unit: mm)

Switches

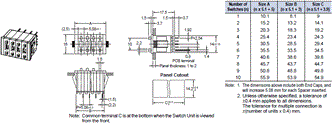

A7D-106(-1)
PCB Terminals

A7D / A7DP Dimensions 2

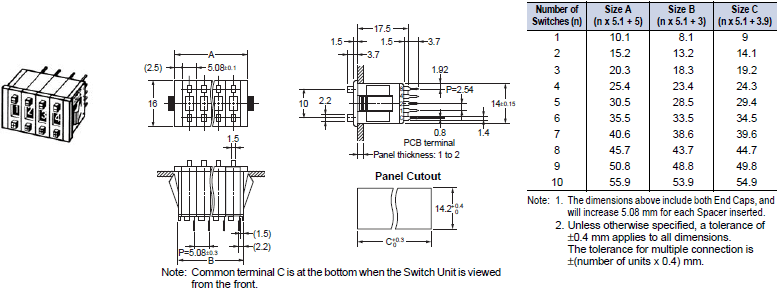

A7D-206(-1)
PCB Terminals

A7D / A7DP Dimensions 3

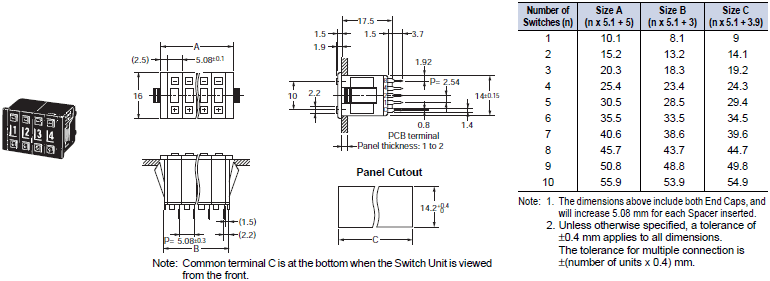

A7DP-206(-1)
PCB Terminals, Pen-push Model

A7D / A7DP Dimensions 4

Accessories (Order Separately)

End Caps for Push-operated Switches

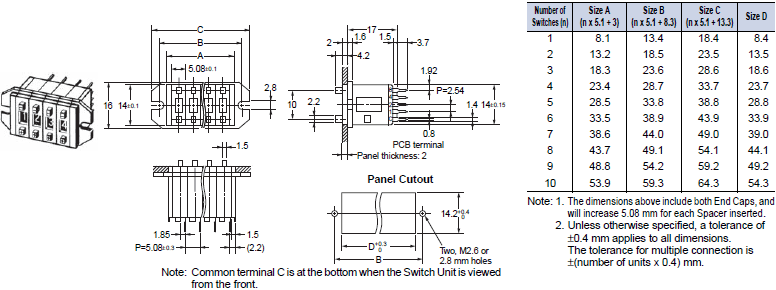

A7D-1M(-1) Screw Mounting (Back Mounting)

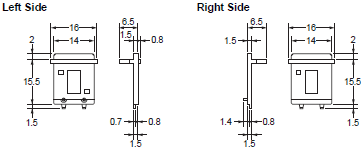

A7D / A7DP Dimensions 6

End Caps for Push-operated Switches

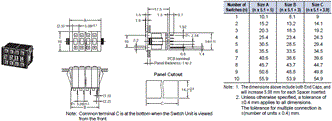

A7D-2M(-1) Snap-in Mounting (Front Mounting)

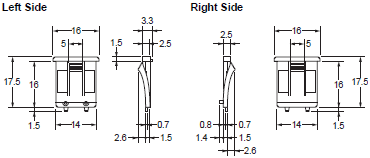

A7D / A7DP Dimensions 7

Spacers for Push-operated Switches

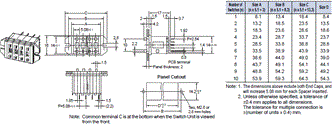

A7D-1P[](-1) Screw Mounting (Back Mounting)

A7D / A7DP Dimensions 8

Note: The [] in the Spacer model number stands for a letter in the range A to U.
          (Refer to the table under the explanation about Spacers on Catalog.)

Spacers for Push-operated Switches
A7D-2P[](-1) Snap-in Mounting (Front Mounting)

A7D / A7DP Dimensions 9

Note: The [] in the Spacer model number stands for a letter in the range A to U.
          (Refer to the table under the explanation about Spacers on Catalog.)

Note: Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ± 0.4 mm.
