MicroHAWK V430-F / V420-F / V330-F / V320-F

Autofocus Multicode Reader/Multicode Reader

MicroHAWK V430-F / V420-F / V330-F / V320-F

Autofocus to read codes at different distances.

Related Contents

last update: February 14, 2020

MicroHAWK V430-F

V430-F V430-F[][][][]03M-[][][] V430-F[][][][]12M-[][][] V430-F[][][][]50C-[][][]
Symbologies
*1		 1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2		 Number of Reading
Digits		 No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
8 Red or White		 Outer LEDs:
8 Red or White; 24 Red
or White for V430-
F[][][][]12M-R[][]		 Outer LEDs:
8 White
Reading Distance/
Field of View		 Refer to Read Ranges section for detail.
Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture		 Focus Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm,
Narrow = 16 mm, L = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger External Trigger (Edge or Level), Communication Trigger (Ethernet,
RS-232C)
I/O
Specifications		 Input Signals Trigger Input; New Master: Bi-Directional, Optoisolated, 4.5-28 V rated (10
mA @ 28 VDC)
Output Signals 3 Signals: Bi-Directional, Optoisolated, 1-28V rated, (ICE < 100 mA at
24VDC, current limited by user)
Communica-
tion		 Connectivity RS-232C, Ethernet TCP/IP, EtherNet/IP, PROFINET
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red),
PWR (Green)
Power Supply Voltage 5 to 30.0 VDC, 200 mV p-p max ripple
Current Consumption 0.18 A at 24 VDC (max.)
Environmental
Immunity *4		 Ambient Temperature
Range		 Operating: 0 to 45°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range		 Operating and Storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)		 Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis.
Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis
Shock Resistance
(Destructive)		 50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis
Degree of Protection IEC 60529 IP65 and IP67
Weight Main Body Only Approx. 68 g
Packaging Weight Approx. 174 g (including packing)
Dimensions Main Body Dimensions 44.5 (W) × 44.5 (D) × 25.4 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class B) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
     validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.

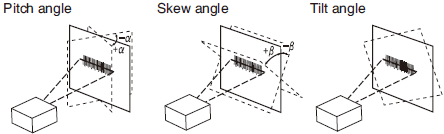

*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 2

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

MicroHAWK V420-F

V420-F V420-F[][][][]03M-[][][] V420-F[][][][]12M-[][][] V420-F[][][][]50C-[][][]
Symbologies
*1		 1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2		 Number of Reading
Digits		 No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
8 Red or White		 Outer LEDs:
8 Red or White		 Outer LEDs:
8 White
Reading Distance/
Field of View		 Refer to Read Ranges section for detail.
Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture		 Focus Liquid Lens Autofocus or Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm,
Narrow = 16 mm, L = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger External Trigger (Edge or Level), Communication Trigger (Ethernet,
RS-232C)
I/O
Specifications		 Input Signals Trigger Input: 5-28 V rated (0.16 mA @ 5V DC); New Master: 5 to 28 V rated
(0.16 mA @ 5 VDC); Default: 3.3 V rated (0 mA @ 3.3 V)
Output Signals 3 Signals: 5 V TTL-compatible, can sink 10 mA and source 10 mA
Communica-
tion		 Connectivity RS-232C, USB 2.0 High Speed, Ethernet over USB/HID
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), TRIG (Amber), MODE (Amber), LINK (Amber), FAIL (Red),
PWR (Green)
Power Supply Voltage 5 VDC +/- 5%
Current Consumption 650 mA at 5 VDC (max.)
Environmental
Immunity *4		 Ambient Temperature
Range		 Operating: 0 to 45°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range		 Operating and storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)		 Sine Vibration: 10 Hz to 55 Hz, 0.35 mm displacement, 20 cycles/axis.
Random Vibration: 20 Hz to 2000 Hz, 6.295 Grms, 30 min/axis
Shock Resistance
(Destructive)		 50G, 11 ms, sawtooth profile. 3X in each X, Y, Z axis
Degree of Protection IEC 60529 IP54
Weight Main Body Only 120 g
Packaging Weight Approx. 230 g (including packing)
Dimensions Main Body Dimensions 44.5 (W) × 38.1 (D) × 25.4 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class A) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
      validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.

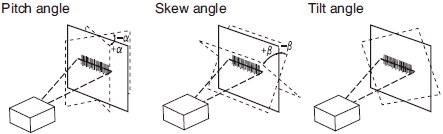

*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 5

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

MicroHAWK V330-F

V330-F V330-F[][][][]03M-
[][][]		 V330-F[][][][]12M-
[][][]		 V330-F[][][][]50C-
[][][]
Symbologies
*1		 1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2		 Number of Reading
Digits		 No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
None		 Outer LEDs:
None		 Outer LEDs:
None
Reading Distance/
Field of View		 Refer to Read Ranges section for detail.
Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture		 Focus Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger Communication Trigger (Ethernet)
I/O
Specifications		 Input Signals Ethernet
Output Signals Ethernet
Communica-
tion		 Connectivity Ethernet TCP/IP
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), PWR (Green)
Power Supply Voltage Source: 44-57 VDC IEEE802.3af POE
Current Consumption Max Current: 0.10A
Environmental
Immunity *4		 Ambient Temperature
Range		 Operating: 0 to 40°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range		 Operating and Storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)		 Oscillation Frequency: 10 to 150Hz, Half Amplitude: 0.35 mm, Vibration
Direction: X/Y/Z, Sweep Time: 8 minute/count, Sweep Count: 10 times
Shock Resistance
(Destructive)		 Impact Force: 150 m/s2, Test Direction: 6 directions, three times each (up/
down, front/back, left/right)
Degree of Protection IEC 60529 IP40
Weight Main Body Only 72 g
Packaging Weight Approx. 180 g (including packing)
Dimensions Main Body Dimensions 40 (W) × 63 (D) × 24 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class B) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
      validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.

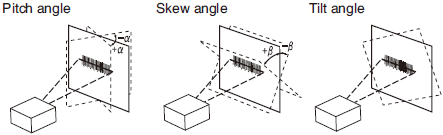

*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 8

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

MicroHAWK V320-F

V320-F V320-F[][][][]03M-
[][][]		 V320-F[][][][]12M-
[][][]		 V320-F[][][][]50C-
[][][]
Symbologies
*1		 1D Symbologies Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code
93, Pharmacode, PLANET, Postnet, Japanese Post, Australian Post, Royal
Mail, Intelligent Mail, KIX
2D Symbologies Data Matrix (ECC 0-200), QR Code, Micro QR Code, Aztec Code, DotCode
Stacked Symbologies PDF417, MicroPDF417, GS1 Databar (Composite and Stacked)
Reading
Performance
*2		 Number of Reading
Digits		 No Upper Limit (depending on bar width and reading distance)
Aiming Light Two Blue LEDs
Illumination Inner LEDs: Four White and Four Red (Wavelength: 625 nm)
Outer LEDs:
None		 Outer LEDs:
None		 Outer LEDs:
None
Reading Distance/
Field of View		 Refer to Read Ranges section for detail.

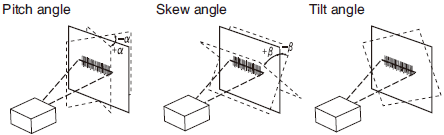

Pitch Angle (α) *3 ±30°
Skew Angle (β) *3 ±30°
Tilt Angle (γ) *3 ±180°
Capture		 Focus Fixed Focus (Wide = 5.2 mm, Medium = 7.7 mm, Narrow = 16 mm)
Resolution 752 (H) x 480 (V) 1280 (H) x 960 (V) 2592 (H) x 1944 (V)
Color / Monochrome Monochrome CMOS Monochrome CMOS Color CMOS
Shutter Global Shutter Global Shutter Rolling Shutter
Frames per Second 60 fps 42 fps 5 fps
Exposure 50 to 100,000 μs
Image Logging FTP
Trigger External Trigger (Edge or Level), Communication Trigger (Ethernet,
RS-232C)
I/O
Specifications		 Input Signals Trigger Input: 5-28 V rated (0.16 mA @ 5 VDC); Default: 3.3 V rated (0 mA
@ 3.3 V)
Output Signals One Signal (Strobe): 5 V TTL-compatible, can sink 10 mA and source 10 mA
Communica-
tion		 Connectivity USB 2.0 Full-Speed (Ethernet over USB and HID), RS-232
Ethernet Specifications 100BASE-TX / 10BASE-T
Indicator LEDs PASS (Green), PWR (Green)
Power Supply Voltage 5 VDC +/- 5%
Current Consumption 450 mA at 5 VDC (max.)
Environmental
Immunity *4		 Ambient Temperature
Range		 Operating: 0 to 40°C Storage: -50 to 75°C (No Icing or Condensation)
Ambient Humidity
Range		 Operating and Storage: 5% to 95% (Non-Condensing)
Ambient Atmosphere No Corrosive Gases
Vibration Resistance
(Destructive)		 Oscillation Frequency: 10 to 150 Hz, Half Amplitude: 0.35 mm, Vibration
Direction: X/Y/Z, Sweep Time: 8 minute/count, Sweep Count: 10 times
Shock Resistance
(Destructive)		 Impact Force: 150 m/s2, Test Direction: 6 directions, three times each (up/
down, front/back, left/right)
Degree of Protection IEC 60529 IP40
Weight Main Body Only 59 g
Packaging Weight Approx. 166 g (including packing)
Dimensions Main Body Dimensions 52 (W) × 39 (D) × 24 (H) mm
Packaging Dimensions 170 (W) × 117 (D) × 86 (H) mm
Accessories ReadMeFirst, CE Compliance Sheet
LED Safety Standard IEC 62471-1: 2006 Risk-Exempt Group
Safety Standards EN 55024:2010, EN 55032:2015 + AC:2016
FCC Part 15, Subpart B (Class B) UL60950-1
BIS
RCM, KC, EAC and BSMI Pending
Materials Case Aluminum Diecast, Alumite (Black)
Reading Window Acrylic
Software WebLink

*1. These symbologies are supported based on Omron’s read capability validation standard. Omron recommends that
      validation be performed for each application.
*2. Unless otherwise specified, reading performance is defined with center of field of view, angle R=∞.
*3.

MicroHAWK V430-F / V420-F / V330-F / V320-F Specifications 11

*4. In an electrically noisy environment, use only the V430-F in combination with a noise filter cable (V430-W[]F-[]M) to
     ensure proper operation.

Details of the form which isn't in this page see a Data Sheet (Q258-E1), please.

last update: February 14, 2020

Product Category

Products

About Us

Solutions

Privacy

Services

Resources

Omron Automation is an industrial automation partner that creates, sells and services fully integrated automation solutions that include sensing, control, safety, vision, motion, robotics and more.

Follow Us

Youtube Facebook Linkedin
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
