H5CC
Digital Timer
New and improved design for easier use, programming, maintenance and user feedback. The improved user interface is intuitive and offers better overall visibility. Replacement time notification function notifies the user of potential preventive maintenance.
Related Contents
Application Solutions
last update: April 3, 2023

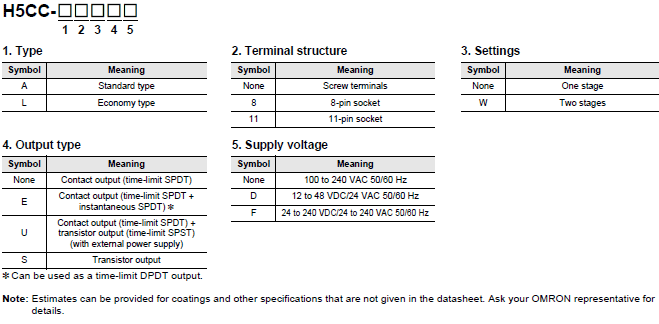

Model Number Legend (Not all possible combinations of functions are available.)
Ordering Information
| Type | Time ranges | Operating modes | External connections | Inputs | Outputs | Power
supply voltage |
Models |
|---|---|---|---|---|---|---|---|
| H5CC-A | 0.001 to 999.999 s
0.01 to 9999.99 s 0.1 to 99999.9 s 1 to 999999 s 1s to 99 h 59 min 59 s 0.1 to 99999.9 min 1 to 999999 min 1 min to 9999 h 59 min 0.1 to 99999.9 h 1 to 999999 h |
A: Signal ON delay I
F-1: Cumulative (Timer does not reset when power comes ON.) |
Screw terminal blocks | Signal, Reset, Gate
(NPN/PNP inputs) |
Transistor
output (DPST) |
12 to 48 VDC/
24 VAC |
H5CC-AWSD |
| ＜Timer Mode＞
A: Signal ON delay I A-1: Signal ON delay II A-2: Power ON delay I A-3: Power ON delay II b: Flicker I b-1: Flicker II b-5: One-shot flicker C: Signal ON/OFF delay I d: Signal OFF delay I E: Interval F: Cumulative G: Signal ON/OFF delay II H: Signal OFF delay II Z: ON/OFF-duty-adjustable flicker S: Stopwatch ＜Twin Timer Mode＞ toff: Flicker OFF start I ton: Flicker ON start I toff-1: Flicker OFF start II ton-1: Flicker ON start II |
Screw terminal blocks | Signal, Reset, Gate
(NPN/PNP inputs) |
Contact output (time-limit SPDT) | 100 to 240 VAC | H5CC-A | ||
| 12 to 48 VDC/24 VAC | H5CC-AD | ||||||
| Transistor output (SPST) | 100 to 240 VAC | H5CC-AS | |||||
| 12 to 48 VDC/24 VAC | H5CC-ASD | ||||||
| Contact output (SPDT) + transistor output (SPST) | 100 to 240 VAC | H5CC-AU | |||||
| 12 to 48 VDC/24 VAC | H5CC-AUD | ||||||
| 11-pin socket | Contact output (time-limit SPDT) | 100 to 240 VAC | H5CC-A11 | ||||
| 12 to 48 VDC/24 VAC | H5CC-A11D | ||||||
| Transistor output (SPST) | 100 to 240 VAC | H5CC-A11S | |||||
| 12 to 48 VDC/24 VAC | H5CC-A11SD | ||||||
| Signal, Reset, Gate
(NPN inputs) |
Contact output (time-limit SPDT) | 24 to 240 VDC/VAC | H5CC-A11F | ||||
| H5CC-L | 8-pin socket | Signal, Reset
(NPN inputs) |
Contact output (time-limit SPDT) | 100 to 240 VAC | H5CC-L8 | ||
| 12 to 48 VDC/24 VAC | H5CC-L8D | ||||||
| Transistor output (SPST) | 100 to 240 VAC | H5CC-L8S | |||||
| 12 to 48 VDC/24 VAC | H5CC-L8SD | ||||||
| ＜Timer Mode＞
A-2: Power ON delay I b: Flicker I E: Interval Z: ON/OFF-duty-adjustable flicker ＜Twin Timer Mode＞ toff: Flicker OFF start I ton: Flicker ON start I |
None | Contact output (time-limit SPDT + instantaneous SPDT)
Models with instantaneous contact outputs |
100 to 240 VAC | H5CC-L8E | |||
| 12 to 48 VDC/24 VAC | H5CC-L8ED | ||||||
| 24 to 240 VDC/VAC | H5CC-L8EF |
Accessories (Order Separately)
Soft Cover
| Models | Remarks |
|---|---|
| Y92A-48F1 | --- |
Hard Cover
| Models | Remarks |
|---|---|
| Y92A-48 | --- |
Flush Mounting Adapter
| Models | Remarks |
|---|---|
| Y92F-30 | Included with models with terminal blocks. |
| Y92F-45 | Use this Adapter to install the Timer in a cutout previously made for a DIN 72 x 72 mm device
(panel cutout: 68 x 68 mm). |
| Y92F-38 | Use for replacement of the 81-dia. hole device (H3AM). |
Waterproof Packing
| Models | Remarks |
|---|---|
| Y92S-P6 | Included with models with terminal blocks. |
Connection Sockets
| Models | Type | Connectable Timers | Remarks |
|---|---|---|---|
| P2CF-08 | Front Connecting Socket | H5CC-L8[] | --- |
| P2CF-08-E | Front Connecting Socket
(Finger-safe Type) |
Round crimp terminals cannot be used.
Use forked crimp terminals. |
|
| P2CF-11 | Front Connecting Socket | H5CC-A11[] | --- |
| P2CF-11-E | Front Connecting Socket
(Finger-safe Type) |
Round crimp terminals cannot be used.
Use forked crimp terminals. |
|
| P3G-08 | Back Connecting Socket | H5CC-L8[] | A Y92A-48G Terminal Cover can be used with the Socket to enable finger protection. |
| P3GA-11 | H5CC-A11[] |
Terminal Covers for P3G-08 and P3GA-11 Back Connecting Sockets
| Models | Remarks |
|---|---|
| Y92A-48G | --- |
