Flying Trigger

Industrial Automation

Flying Trigger Technology

High-speed inspection with accuracy

Challenges in maintaining inspection accuracy

Vision inspection can help us improve the quality of our products. However, when it comes to high speed production of more than 1000ppm, it becomes challenging to capture images accurately. When producing at such high speed, it is challenging yet crucial, to coordinate and control the system for accurate image inspection.

High-precision trigger control

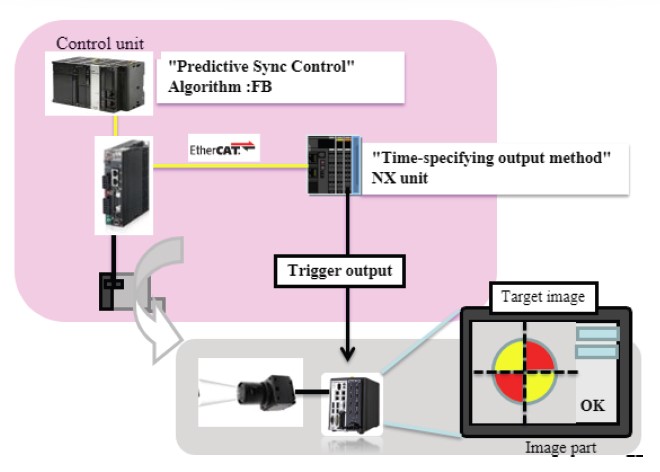

Flying trigger technology achieves positioning accuracy in imaging while moving without stopping the camera or parts. This technology enables complete synchronization of motion control (rotating objects, etc.) and image capture timing, it can be realized by combining NJ-series with 1S servo/G5 servo.

Balance between inspection quality and take time through Flying Trigger Control

Applications of Predictive Synchronous Control

Inspection of elongate and large workpiece

Synchronization of Motion Control

Inspection of Parts in a Tray

Benefits with OMRON Flying Trigger Solution

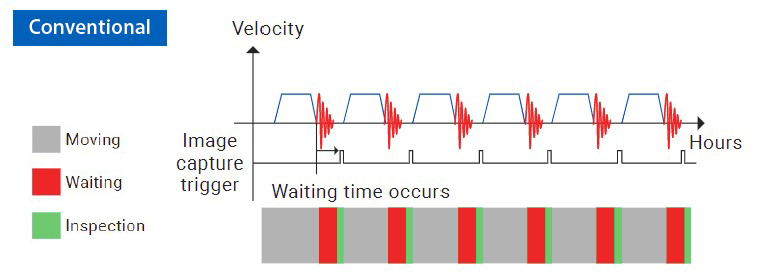

With vibrations occurring when stopping, the inspection may conducted only after settlement of the vibrations

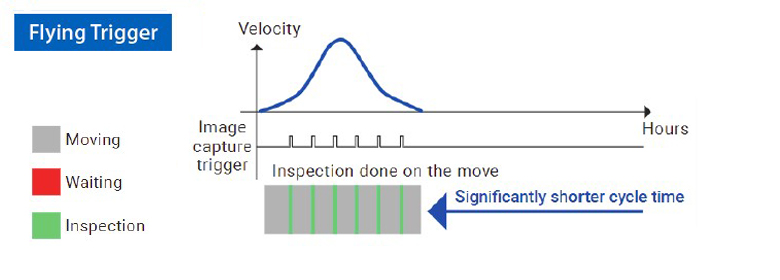

Inspection conducted while in motion, the stopping operation is eliminated, significantly reducing the cycle time.

Find out how to improve quality control
in vision inspection, saving take time.
